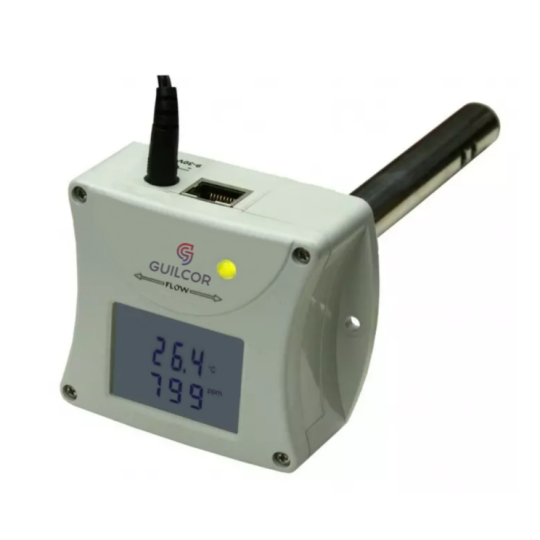

WebSensor - remote CO2 concentration with Ethernet interface, duct mounting

Reference AR006618

  • CO2 sensor.
  • Maintenance free, long term stability.
  • High resistance to pollution.
  • Easy wireless communication.
1.52MB Download

Cloud Security | WebSensor - remote CO2 concentration with Ethernet interface, duct mount

1.2MB Download

CloudSupport | WebSensor - remote CO2 concentration with Ethernet interface, duct mount

2.41MB Download

Introduction Manual | WebSensor - remote CO2 concentration with Ethernet interface, duct mount

1.21MB Download

Quick Start | WebSensor - remote CO2 concentration with Ethernet interface, duct mount

Product features WebSensor - remote CO2 concentration with Ethernet interface, duct mounting

TECHNICAL DATA

Web Sensor t-line CO2 concentration at duct mounting.

Web sensor with CO2 concentration sensor integrated for duct mounting.

A temperature and CO2 adjustment procedure at several points leads to excellent CO2 measurement accuracy over the entire operating temperature range; it is a must for process control and outdoor applications.

La NDIR CO2 detection procedure dual wavelength automatically compensates for the effects of aging.

The CO2 module is very pollution resistant and offers operation maintenance free and exceptional stability long-term.

The CO2 concentration is displayed on the screen or indicated by a colored LED.

Processing and analysis of measured data

  • Online in Cloud
  • Database software
  • Integration into third-party systems

INCLUDED IN DELIVERY

  • AR006618
  • Manual
  • Traceable calibration certificate
  • Free Tsensor configuration software
  • Cloud for 3 months
