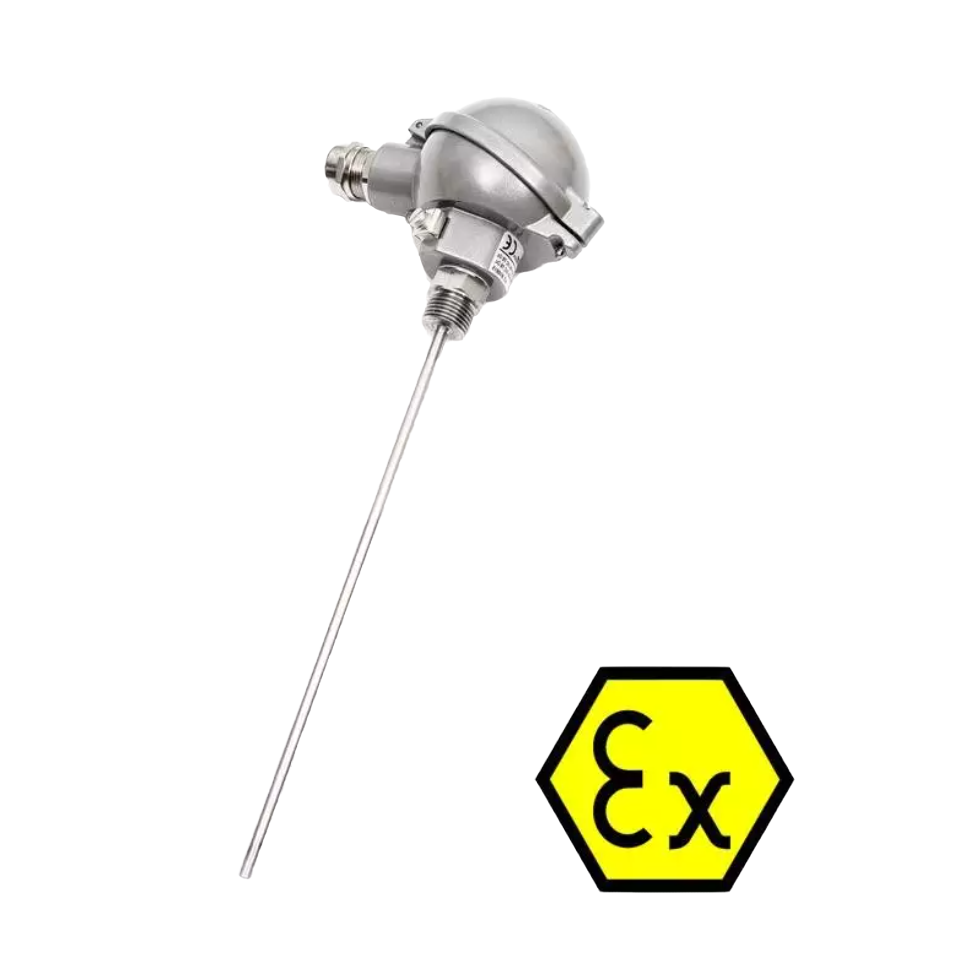

ATEX probe with connector and plunger (Pt100, Ni1000, NTC)

ATEX probe with connector and plunger (Pt100, Ni1000, NTC)
  • Measures the contact temperature of liquid or gaseous substances.
  • Maximum admissible power of the sensors of 2 mW.
  • Temperature range between -30 and 80 ° C.
  • The temperature must not be exceeded in an explosive area.

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "ATEX probe with fitting and plunger (Pt100, Ni1000, NTC)"

Sensor type NK-160EX NK-161EX NK-162EX
Sensor type Nor 1000/5000 Nor 1000/6180 Ni 891
Measuring range in zone 2
-30 to 80 ° C
Max. DC measuring current 1 mA 1 mA 1 mA

Sensor type PTK-160EX PTK-260EX PTK-360EX HK-160EX
Sensor type Point 100/3850 Point 500/3850 Point 1000/3850 20 kΩ NTC thermistor
Measuring range in zone 2
-30 to 80 ° C
Max. DC measuring current 3 mA 1,5 mA 1 mA 1 mW *)

*) maximum input power

Other parameters
Measuring range v ZONE 2: -30°C ≤ Ta ≤ 80°C
Connection of temperature sensors 2 wire, 3 wire, 4 wire
Recommended power from an SELV or PELV source,
maximum absorbed power of 2 mW
Response time in white water> 0,2 m / s - for a rod diameter of 4 mm: τ0,5 ≤ 4 s, τ0,9 ≤ 10 s
Isolation resistance > 200 MOhm at 500 V DC, 25 ± 3 ° C, humidity <80%
Dielectric strength 1000 V DC for 1 s, 25 ± 5 ° C, max 80%
Degree of protection
IP 66 according to EN 60529
Terminal type Ceramic, recommended conductor cross section from 0,5 to 1,0 mm 2
Head material en aluminum

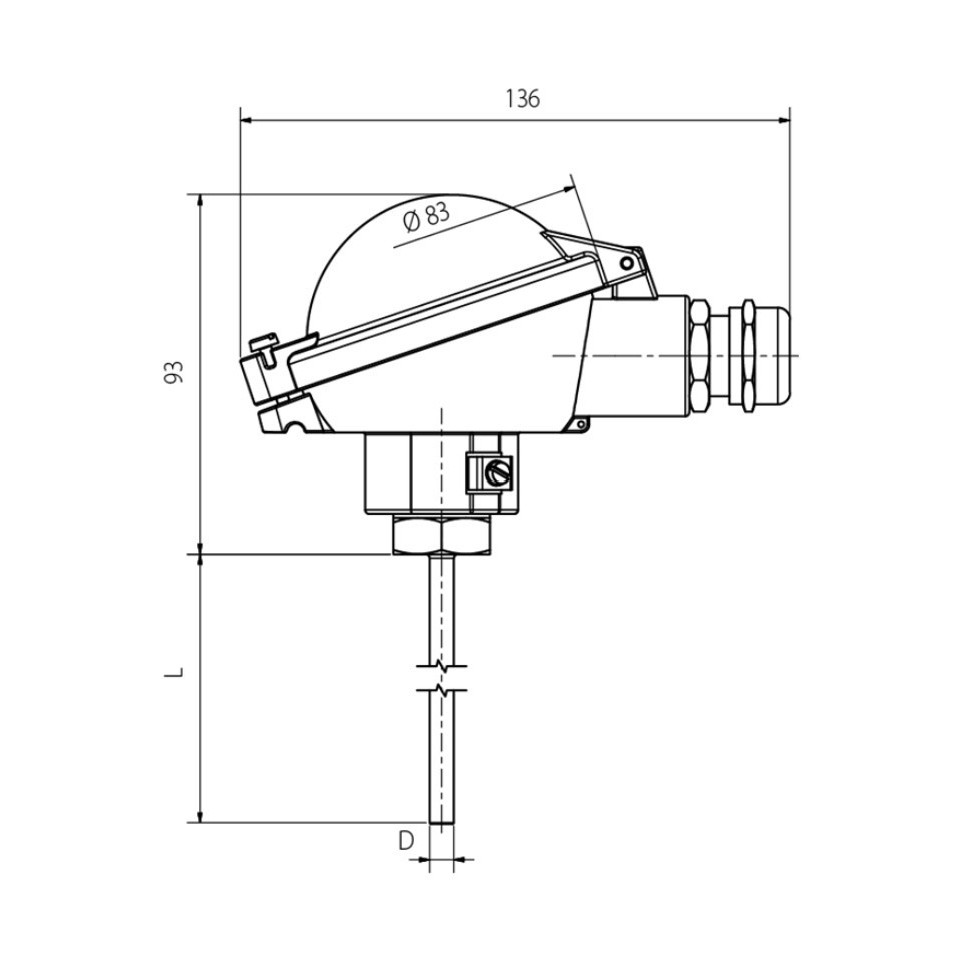

Head dimensions 83 x 83 mm
Resistance to head temperature -30 to 90 ° C
Material of the stem stainless steel DIN 1.4301, 1.4404 or 1.4571
Diameter of the dial D
4 mm, 6 mm, 8 mm, 10 mm
Standard rod length L
diameter 4 mm: 50, 100, 160, 220 mm
other diameters: 50, 100, 160, 220, 280, 340 and 400 mm
Standard types of wires G ½ "and M20x1,5
Resistance to supply wires 0,254 Ω / m (two-wire connection)
Maximum operating pressure with a rod diameter of 4 mm at 2,5 MPa
with a 6 to 10 mm diameter rod at 6,3 MPa
The weight min 0,4 kg

General

  • Reference
  • Name ATEX probe with connector and plunger (Pt100, Ni1000, NTC)

Features

  • Measured Temperature
  • Product Type NTC
    Ni1000
    Ni10000
    Pt100
    Pt500
    Pt1000
  • Maximum operating temperature 80°C
  • Connection type G1 / 2 "
    M20 x 1.5
  • Model Terminal block probe
  • certification ATEX EX E
  • Cable length With terminal block

Attachments

ATEX probe with fitting and plunger (Pt100, Ni1000, NTC) - Data sheet GNK160exR
Download (287.96KB)
