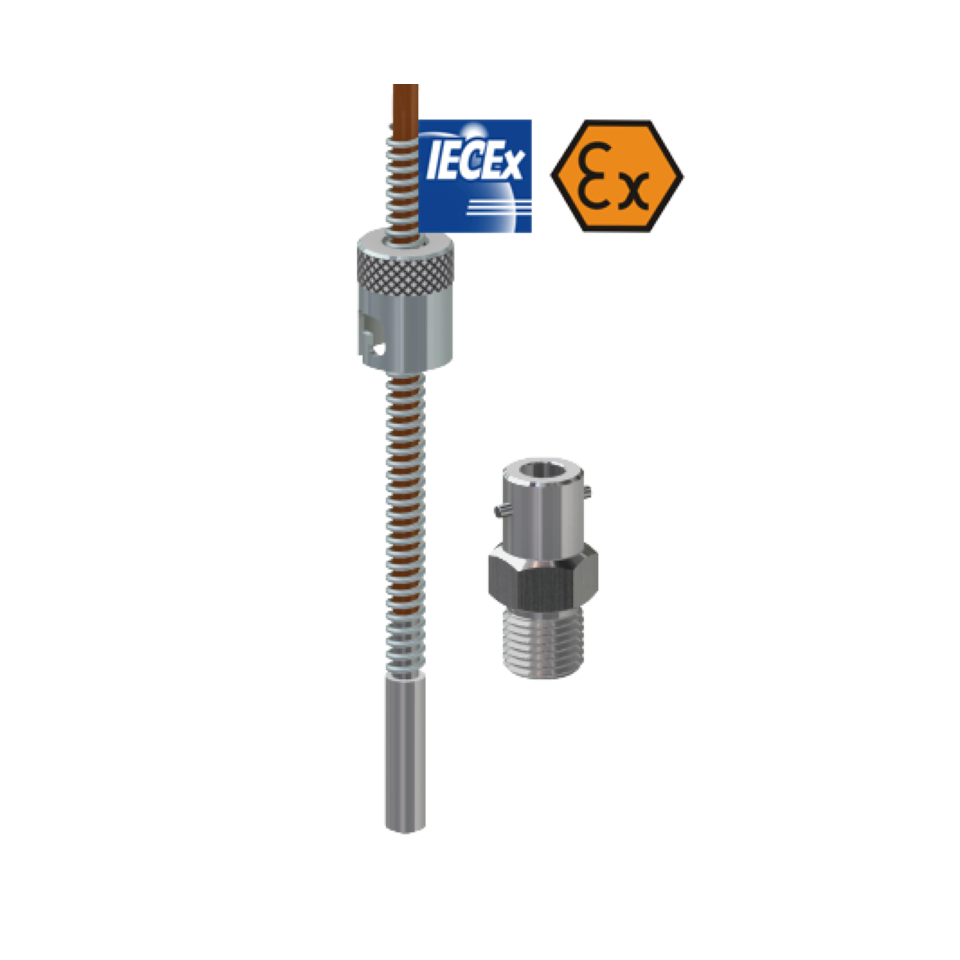

Resistance thermometer with wired ATEX intrinsically safe bayonet

Reference: GXI-TOPE310R / GXI-TOPE311R / GXI-TOPE312R

Resistance thermometer with wired ATEX intrinsically safe bayonet
  • Measuring range: -50 .. + 400 ° C (depends on cable insulation)
  • Plastics industry
  • Light energy industry
  • General industrial services
  • Installation in hazardous areas:
    Gases, vapors, mists (G): Zone 0, 1, 2
    Dust (D): Zone 20, 21, 22
    Mines: M1
Delivery in 3 to 5 weeks

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "Intrinsically Safe ATEX Wired Bayonet Resistance Thermometer"

Features

  • Single or double RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
    Cu50, Cu53 according to GOST 6651-94
  • Stainless steel AISI321 / 1.4541
  • Version with protective tube diameter Ø5 mm (XI-TOPE310), Ø6 mm (XI-TOPE311), Ø8 mm (XI-TOPE312)

Temperature difference

The temperature range of the sensor depends on the insulation of the connection cable.

Temperature difference

Possible diameters of the protection tube Cable insulation
-10..+105°C Ø6, Ø8mm PVC
-50..+180°C Ø6, Ø8mm silicone
-50..+260°C Ø5, Ø6, Ø8 mm teflon® PFA
-50..+400°C Ø6, Ø8mm fiberglass


Description

The resistance thermometers of this series are designed to be screwed directly into a socket, mainly in extrusion molds. These thermometers are suitable for solid media under moderate mechanical load and under normal chemical conditions.

Construction

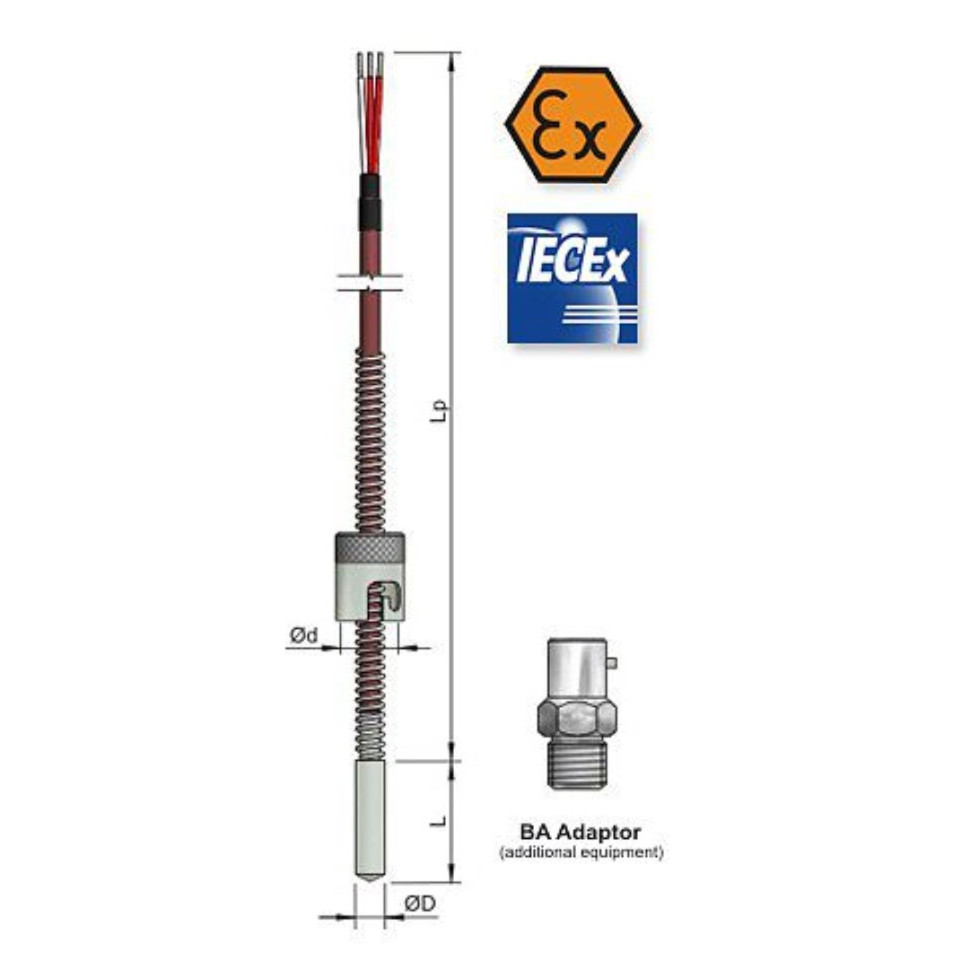

The sensor consists of a thermometric resistance, a protective tube, a spring, a bayonet cap and a cable.

Insertion length, process connection, construction type, number of sensors, accuracy, cable insulation and connection method can be individually selected for the respective application.

Autres versions

This datasheet is only a small portion of our cable resistance thermometer supply program. On customer request, other versions can also be delivered.

PVC / Sheath: PVC -10 .. + 105 ° C
Silicone / Sheath: silicone -50 .. + 180 ° C
Teflon FEP / Sheath: silicone -50 .. + 180 ° C
Teflon FEP / Sheath: silicone / Braid: copper -50 .. + 180 ° C
Teflon PFA / Sheath: teflon PFA -50 .. + 260 ° C
Teflon PFA / Braid: stainless steel -50 .. + 260 ° C
Teflon PFA / Sheath: teflon PFA / Braid: copper -50 .. + 260 ° C
Fiberglass / Sheath: fiberglass / Braid: stainless steel -50 .. + 500 ° C

General

  • Reference GXI-TOPE310R / GXI-TOPE311R / GXI-TOPE312R
  • Name Resistance thermometer with wired ATEX intrinsically safe bayonet

Features

  • Product Type 2x Pt100
    2x Pt500
    2x Pt1000
    Ni1000
    Ni10000
    Pt100
    Pt500
    Pt1000
  • Number of threads 2
    3
    4
  • Maximum operating temperature 400°C
  • Precision Class A + -0.15 ° C
    Class B + -0.3 ° C
  • Diameter 5 mm
    6 mm
    8 mm
  • Connection type Custom projects
  • Model Wired probe
  • Certification ATEX EXI
  • Cable length Custom projects
