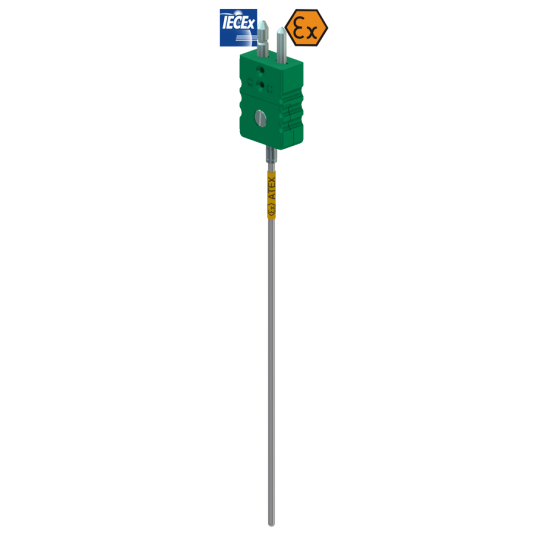

Wired resistance thermometer with intrinsically safe ATEX connection

Reference: GXI-TOPE414R

Wired resistance thermometer with intrinsically safe ATEX connection
  • Measuring range: -50 .. + 400 ° C (depends on cable insulation)
  • Fine chemical industry
  • Light energy industry
  • General industrial services
  • Food industry
  • Installation in hazardous areas:
    Gases, vapors, mists (G): Zone 0, 1, 2
    Dust (D): Zone 20, 21, 22
    Mining: M1
Delivery in 3 to 5 weeks

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "Wired resistance thermometer with intrinsically safe ATEX connection"

Features

  • Single or double RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
    Cu50, Cu53 according to GOST 6651-94
  • Stainless steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 on request
  • Threaded process connection

Temperature difference

The temperature range of the sensor depends on the insulation of the connection cable.

Temperature difference Cable insulation
-10..+105°C PVC
-50..+180°C silicone
-50..+260°C teflon® PFA
-50..+400°C fiberglass


Description

Resistance thermometers in this series are designed to be screwed directly into the process, primarily into vessels and pipelines. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and under normal chemical conditions.

Construction

The sensor consists of a temperature resistance, a threaded process connection and a cable.

The process connection, number of sensors, accuracy, cable insulation and connection method can be individually selected for the respective application.

Autres versions

This datasheet is only a small portion of our cable resistance thermometer supply program. On customer request, other versions can also be delivered.

PVC / Sheath: PVC -10 .. + 105 ° C
Silicone / Sheath: silicone -50 .. + 180 ° C
Teflon FEP / Sheath: silicone -50 .. + 180 ° C
Teflon FEP / Sheath: silicone / Braid: copper -50 .. + 180 ° C
Teflon PFA / Sheath: teflon PFA -50 .. + 260 ° C
Teflon PFA / Braid: stainless steel -50 .. + 260 ° C
Teflon PFA / Sheath: teflon PFA / Braid: copper -50 .. + 260 ° C
Fiberglass / Sheath: fiberglass / Braid: stainless steel -50 .. + 500 ° C

General

  • Reference GXI-TOPE414R
  • Name Wired resistance thermometer with intrinsically safe ATEX connection

Features

  • Product Type 2x Pt100
    2x Pt500
    2x Pt1000
    Ni1000
    Ni10000
    Pt100
    Pt500
    Pt1000
  • Number of threads 2
    3
    4
  • Maximum operating temperature 400°C
  • Precision Class A + -0.15 ° C
    Class B + -0.3 ° C
  • Connection type Custom projects
  • Model Wired probe
  • Certification ATEX EXI
  • Cable length Custom projects
