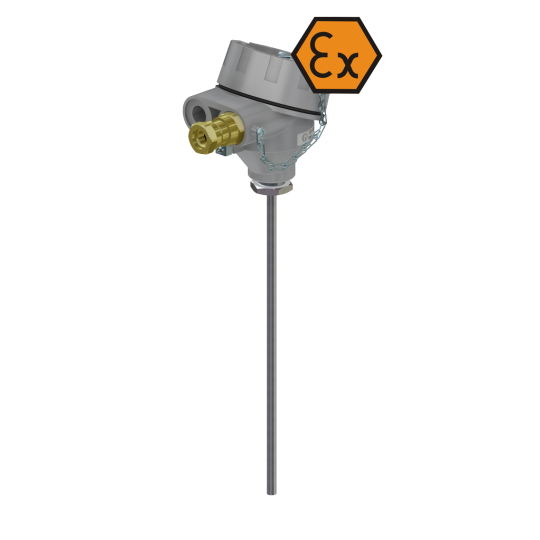

Thermocouple with connection head 1800 ° C ATEX intrinsically safe
Thermocouple with connection head 1800 ° C ATEX intrinsically safe
Thermocouple with connection head 1800 ° C ATEX intrinsically safe Thermocouple with connection head 1800 ° C ATEX intrinsically safe

Thermocouple with connection head 1800 ° C ATEX intrinsically safe

Reference GXI-TT438/40/41/42/43/44R

  • Design temperature range:
    Type R (Pt13% Rh-Pt): 0..+1600°C
    Type S (Pt10% Rh-Pt): 0..+1600°C
    Type B (Pt30% Rh-Pt6% Rh): 0..+1800°C
  • Technological process installations in all industries
  • Installation in hazardous areas:
    Gases, vapors, mists (G): Zone 0, 1, 2
    Dust (D): Zone 20, 21, 22

Product features Thermocouple with connection head 1800 ° C ATEX intrinsically safe

Features

  • Single and double TC
  • Interchangeable measuring insert
  • Protective tube material: C799 corundum or C610 mulite
  • Protective tube diameters:
    XI-TT438 thermocouple with outer diameter of douplex ceramic tube. Thermocouple
    XI-TT440 Ø24 mm with ceramic tube dia.
    XI-TT441 Ø15 mm thermocouple with douplex ceramic tube dia.
    Thermocouple XI-TT442 Ø15 mm with ceramic tube dia. Thermocouple
    XI-TT443 Ø10 mm with ceramic tube dia. Thermocouple
    XI-TT444 Ø8 mm with ceramic tube dia. Ø6 mm
  • ATEX II GD cable gland, IP65 (cable diameter Ø5..10mm)
  • Output signal: TC or 4..20 mA (option)


Description

The sensor consists of an interchangeable measuring insert, an outer ceramic protective tube and an aluminum connection head where the mounting of a temperature transmitter with a 4-20 mA / HART output signal ® or Profibus®PA is possible.

The measuring insert used is an interchangeable part of the sensor, which means that only the insert and not the entire sensor should be disassembled in the event of damage or for periodic inspection. Maintenance costs are then reduced.

Thermocouple length, ceramic tube diameter, connection head as well as type and number of sensors, accuracy and connection method can be individually selected for the respective application.

Temperature transmitter (option)

The transmitter is mounted inside the sensor connection head: directly on the measuring insert or in the cap
top of the head.

The second method is advantageous because it allows to quickly change the standard measurement support without having to disassemble the transmitter; this means reduced sensor maintenance time and costs and the protection of wires from possible damage. Mounting of two transmitters inside the connection head available on request.

Type G1 Aluminum, Exe M20x1,5 cable gland, IP68
Type G2 Aluminum, Exe M20x1,5 cable gland, IP68
Type G5 Aluminum, 2 x Exe M20x1,5 cable gland, IP68
Type G6 Aluminum, 2 x Exe M20x1,5 cable gland, IP68
