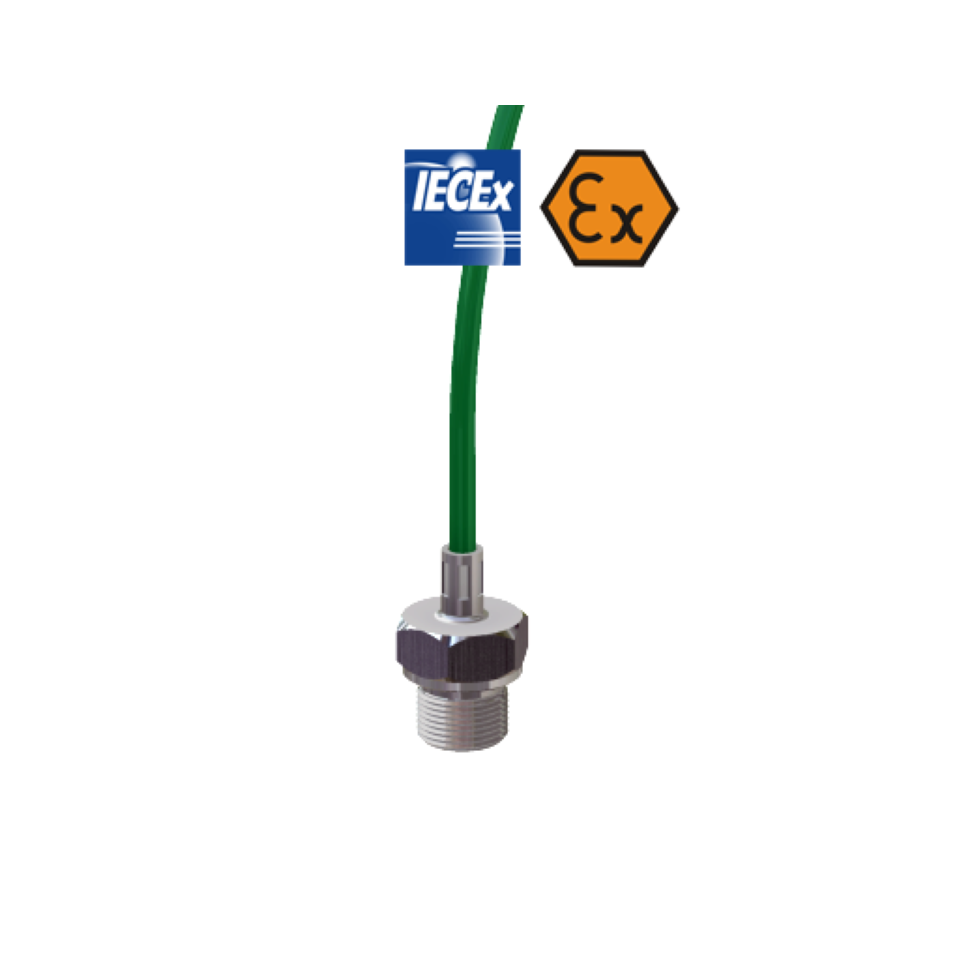

Wired thermocouple with intrinsically safe ATEX connection

Features

• Single or double TC:
  Type J (Fe-CuNi),
  Type K (NiCr-NiAl),
  N-type (NiCrSi-NiSi),
  T-type (Cu-CuNi),
  E-type (NiCr-CuNi)
• Stainless steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 on request
• Threaded process connection




Temperature difference

The temperature range of the sensor depends on the insulation of the connection cable.

image	isolation	measuring range
	PVC / Sheath: PVC	-10 .. + 105 ° C
	Silicone / Sheath: silicone	-40 .. + 180 ° C
	Teflon® FEP / Sheath: silicone	-40 .. + 180 ° C
	Teflon® FEP / Sheath: silicone / Braid: copper	-40 .. + 180 ° C
	Teflon® PFA / Sheath: teflon® PFA	-40 .. + 260 ° C
	Teflon® FEP / Sheath: teflon® FEP / Braid: copper	-40 .. + 205 ° C
	Fiberglass / Sheath: fiberglass / Braid: stainless steel	-40 .. + 400 ° C

Description

The thermocouples in this series are designed to be screwed directly into the process. These thermocouples are suitable for liquid and gaseous media under moderate mechanical load and under normal chemical conditions.

Construction

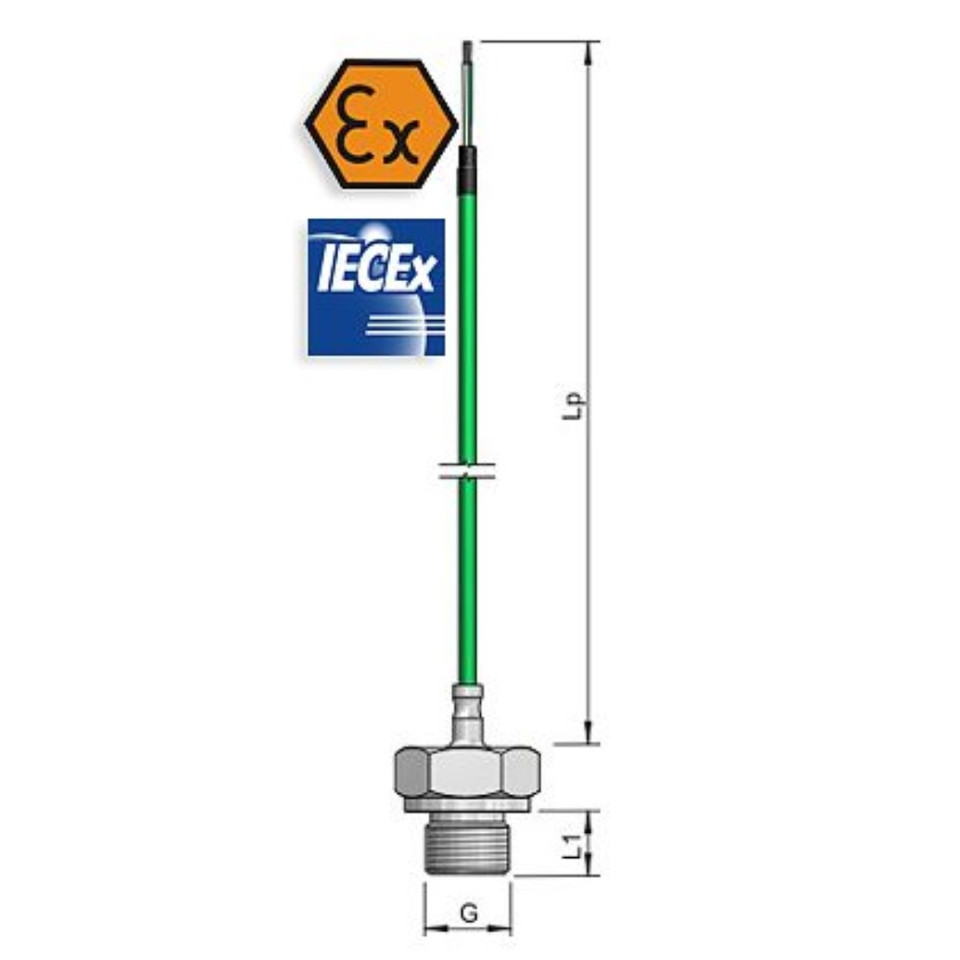

The sensor consists of a thermocouple cable and a threaded process connection.

Thread type, thermocouple type, precision, cable insulation can be individually selected for the respective application.

Autres versions

This datasheet contains only a small portion of our wired thermocouple supply program. On customer request, other versions can also be delivered.
