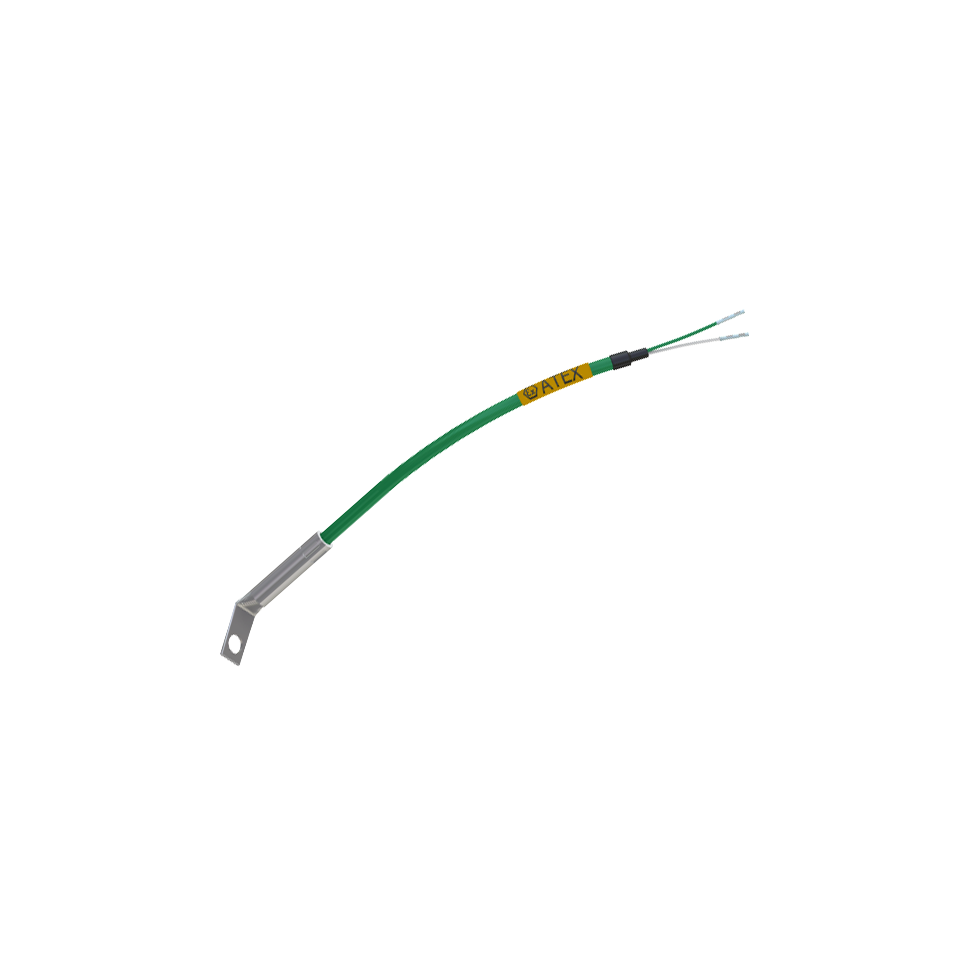

Intrinsically Safe ATEX Lug Wired Thermocouple

Features

• Single or double TC:
  Type J (Fe-CuNi),
  Type K (NiCr-NiAl),
  N-type (NiCrSi-NiSi),
  T-type (Cu-CuNi),
  E-type (NiCr-CuNi)
• Stainless steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 on request
• Standard hole diameters Ø4,2 and Ø6,2 mm




Temperature difference

The temperature range of the sensor depends on the insulation of the connection cable.

image	isolation	measuring range
	PVC / Sheath: PVC	-10 .. + 105 ° C
	Silicone / Sheath: silicone	-40 .. + 180 ° C
	Teflon® FEP / Sheath: silicone	-40 .. + 180 ° C
	Teflon® FEP / Sheath: silicone / Braid: copper	-40 .. + 180 ° C
	Teflon® PFA / Sheath: teflon® PFA	-40 .. + 260 ° C
	Teflon® FEP / Sheath: teflon® FEP / Braid: copper	-40 .. + 205 ° C
	Fiberglass / Sheath: fiberglass / Braid: stainless steel	-40 .. + 400 ° C

Construction

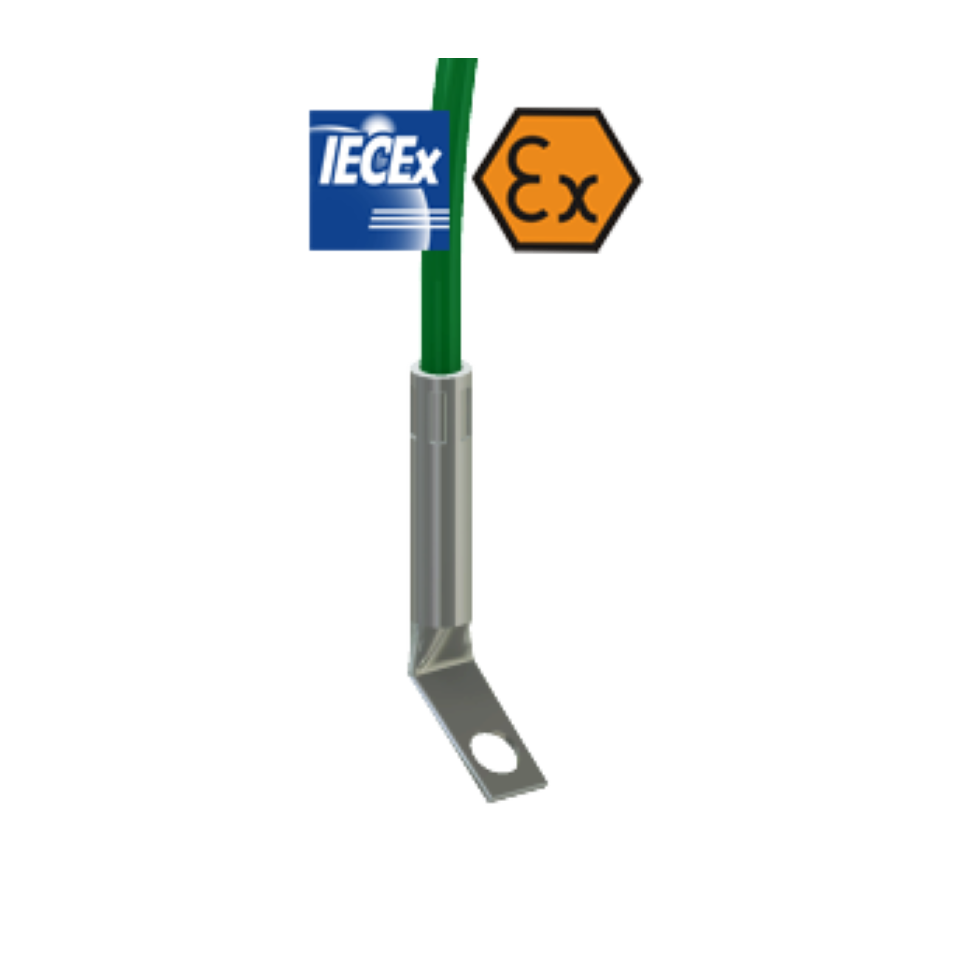

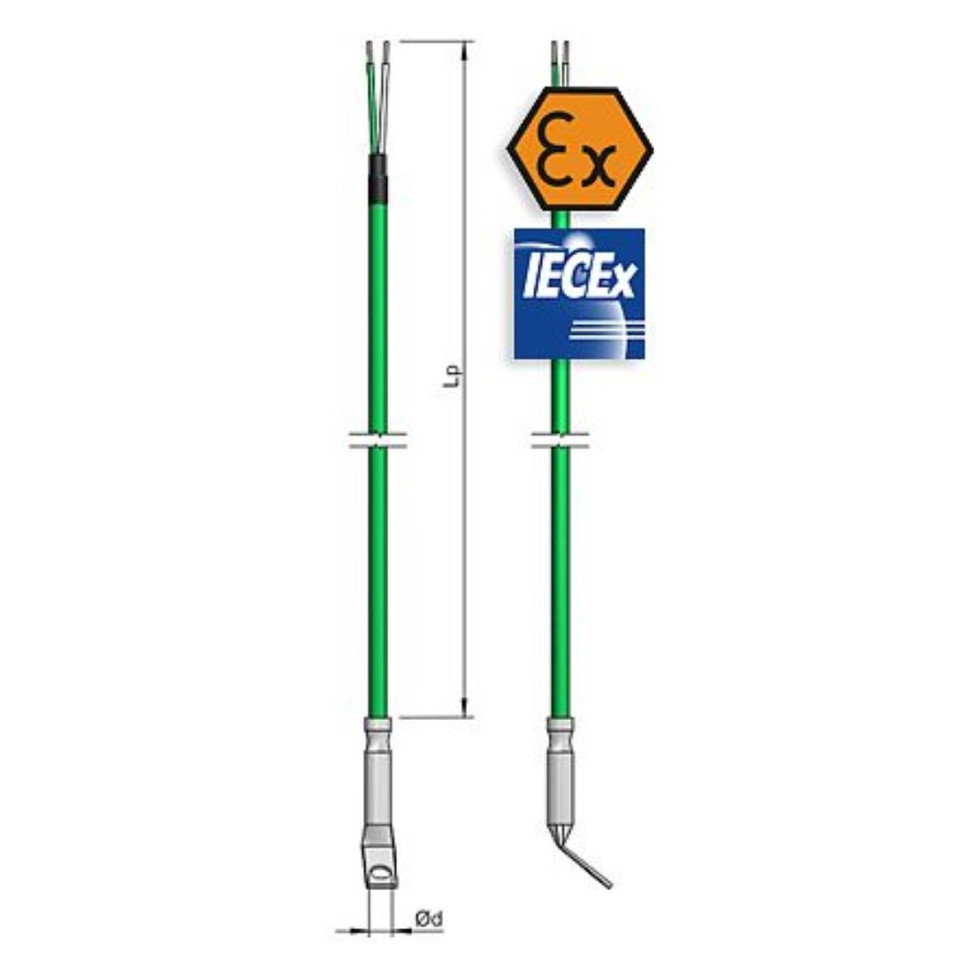

The sensor consists of a thermocouple cable and a protective tube with hole for fixing.

Hole diameter, thermocouple type, accuracy, cable insulation can be individually selected for the respective application.

Autres versions

This datasheet contains only a small portion of our wired thermocouple supply program. On customer request, other versions can also be delivered.
