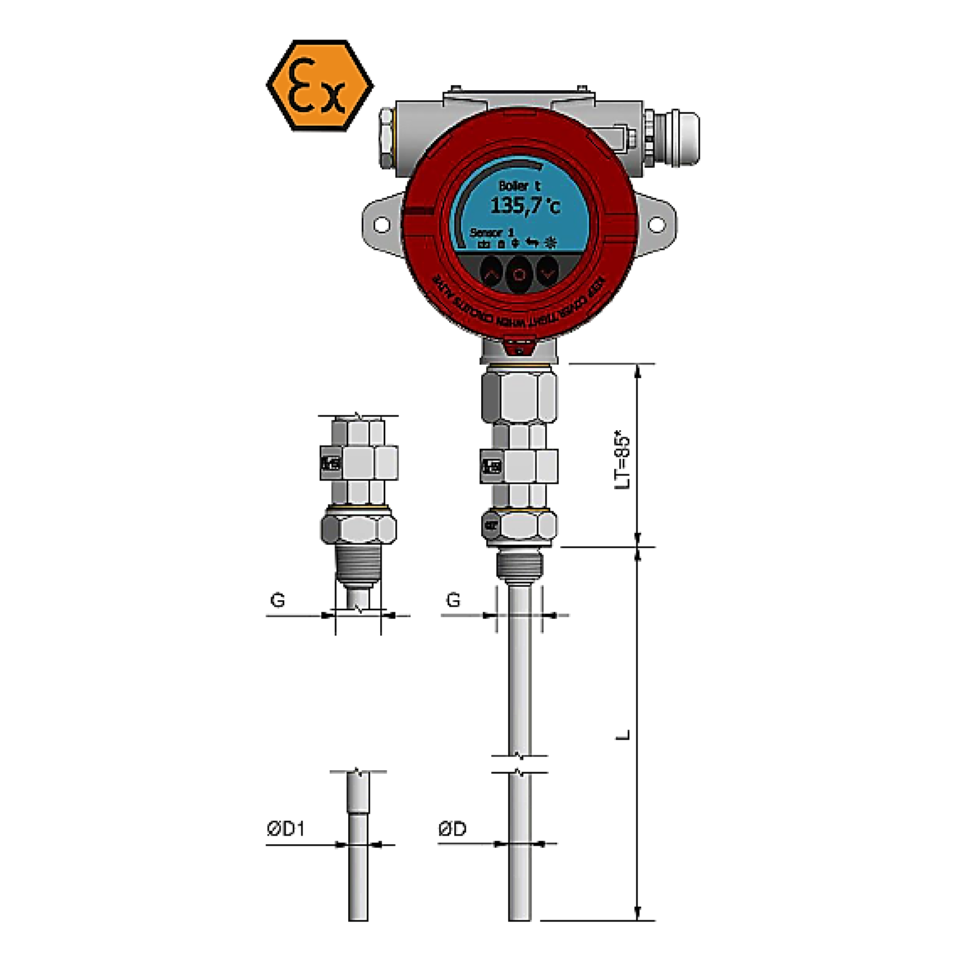

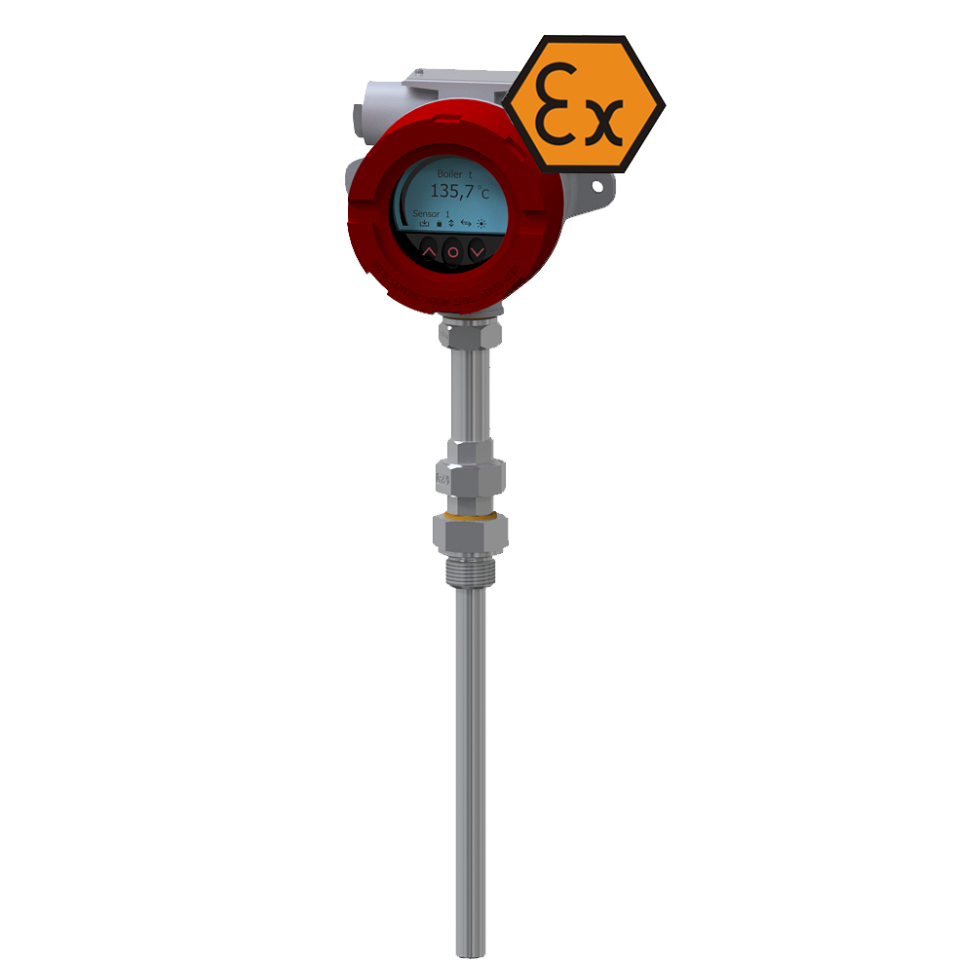

Thermocouple with display and connection - ATEX Exi / Exd

Reference: GXDI-TTGBR

Thermocouple with display and connection - ATEX Exi / Exd
  • Measuring range: -40 .. + 150 ° C
  • Tank construction
  • Technological process installations in all branches of industry
  • Machine building
  • Ventilation and air conditioning systems
  • Heating installations

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "Thermocouple with display and fitting - ATEX Exi / Exd"

Features

  • The easy-to-read 60mm diameter display provides a clear indication of the scale of your process, supported by a radial bar graph.
  • Three optical buttons that work even in difficult conditions (option)
  • Easy-to-follow menus guide you through programming with scrolling help texts
  • HART® 7 functionality with HART® 5 compatibility
  • Spring-loaded measuring insert ensures reliable contact with the thermowell
  • Thermowell diameter: Ø6 ÷ Ø15 mm, or other on request
  • Thermowell material: stainless steel AISI321 (1.4541), AISI316L (1.4404) or other on request
  • High precision over the entire operating temperature range


Assembly instructions

Signed sensors ex.jpg II 1/2G  et ex.jpg II 1/2D have been designed for temperature measurement in all gas, liquid, mist and dust explosion zones. In zone 0 or 20 can only be a protection tube. The connection head can only be in zones 1 (21) or 2 (22). The boundary between the zones is the threaded connection.

Signed sensors ex.jpg II 2G et ex.jpg II 1/2D have been designed for temperature measurement in zones 1 (21) and 2 (22).

Description

The sensor consists of an interchangeable measuring insert, a welded thermowell with process connection and a PR7501 temperature transmitter mounted on site.

The measuring insert is the replaceable part of the complete sensor which reduces the time and cost of maintaining the measuring device installed in the object. The spring-loaded attachment of the measuring insert provides perfect pressure at the bottom of the protection tube, reduces reaction time to temperature changes and increases measurement accuracy and reduces natural vibrations, thus avoiding mechanical and electrical faults .

Insertion length, process connection, thermowell design and material, connection head can be individually selected for the respective application.

The details that make the difference

The field mounted HART® PR7501 temperature transmitter with display and optical buttons allows easy programming, service and diagnosis from the front of the sensor. The sensor display can be rotated in 90 degree increments for easy vertical or horizontal viewing.



Example of sensor installation






Image Optical buttons
With
5_8.png Without

General

  • Reference GXDI-TTGBR
  • Name Thermocouple with display and connection - ATEX Exi / Exd

Features

  • Product Type 2x Thermocouple
    Thermocouple
  • Maximum operating temperature 150°C
  • Diameter 6 mm
    8 mm
    9 mm with reduced tip 6 mm
    9 mm
    10 mm
    12 mm
    15 mm
  • Connection type Custom projects
  • Model With display
    Terminal block probe
  • Thermocouple type E
    J
    K
    T
  • tube length 100 mm
    150 mm
    200 mm
    250 mm
    300 mm
  • certification ATEX EXD
    ATEX EXI
  • Cable length With terminal block
