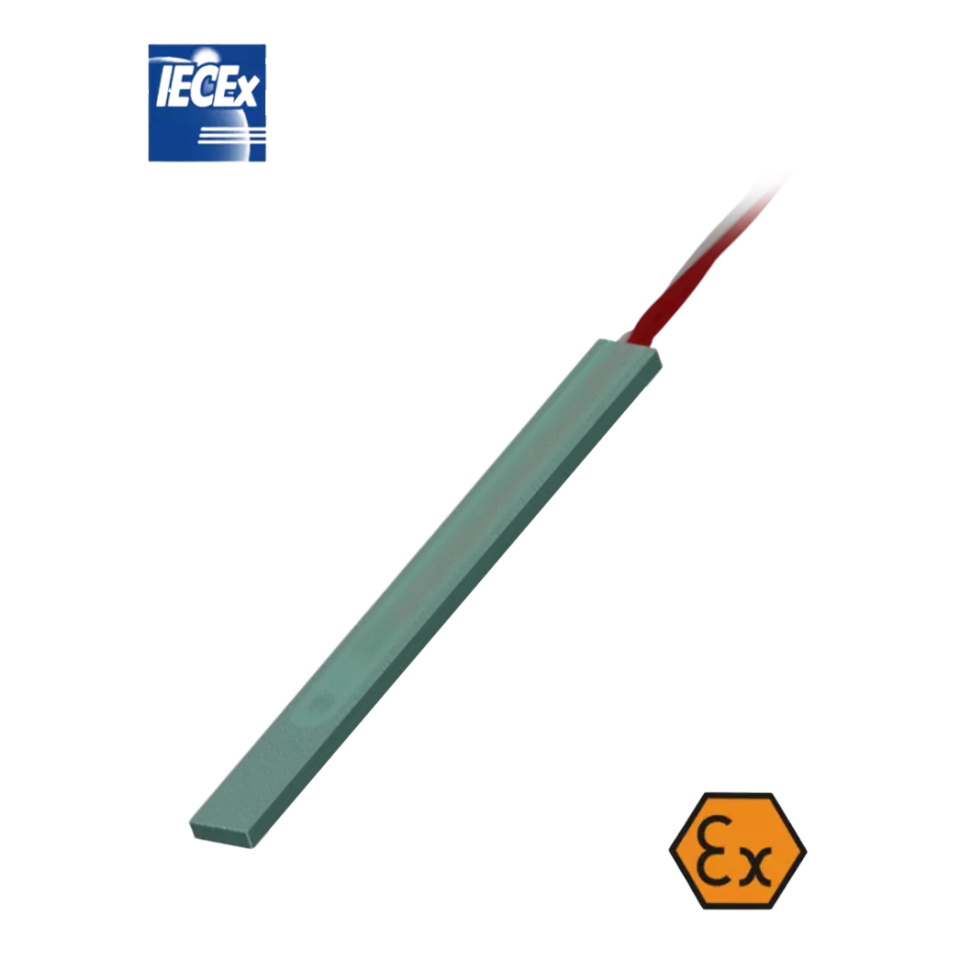

ATEX notch resistance thermometer with fixed measuring point *Step required

GXE-TOPE600R
In production :  1 to 3 weeks
  • Measuring range:
  • -60 .. + 155 ° C (temperature class F)
  • -60 .. + 180 ° C (temperature class H)
  • Stator winding temperature measurement, etc.
  • Energy industry
Your configuration:

International shipping

FREE shipping in Europe from 100 € of purchase

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment term.

+33-233-611-670

English - French - German - Spanish

Features

  • Single and double design
  • 2, 3, 4-wire measuring circuit
  • Detection element:
    Pt100, Pt500, Pt1000 (IEC 751)
    Ni100, Ni500, Ni1000 (DIN 43760)
    Cu50, Cu100 (GOST 6651-2009)
  • Design of the sensitive element:
  • single point (CHIP)
  • Wide range of designs
  • Temperature class F (+ 155 ° C), H (+ 180 ° C)
  • Non-standard parameters available on request:
    - non-standard size
    - cables according to customer specifications
  • Dielectric strength 2,5 kVAC / 60 sec., En
    5,0 kVAC / 60 sec option.

Temperature difference

-60 .. + 155 ° C (temperature class F)

-60 .. + 180 ° C (temperature class H)

CHIP construction (point)

CHIP XE-TOPE600 temperature sensors, also known as winding stator temperature sensor, are installed in the winding slots for temperature measurement and for protection against insulation damage in overheating. It is recommended for the motor to use six temperature sensors, two for each phase. Temperature sensors should be installed in the hottest location of the winding to achieve the best efficiency results.

The sensitive element of the CHIP RTD is installed inside the epoxy laminate sheet. The cable is connected to the sensor and sealed with epoxy resin. These stator RTDs are a cheaper solution than the two-wire construction.


Due to the very good dielectric parameters of HGW and the special composition of epoxy resin, these sensors have high mechanical stability and high voltage resistance of 2,5 kV to 5,0 kV optional.

Autres versions

This datasheet is only a small portion of our cable resistance thermometer supply program. On customer request, other versions can also be delivered.

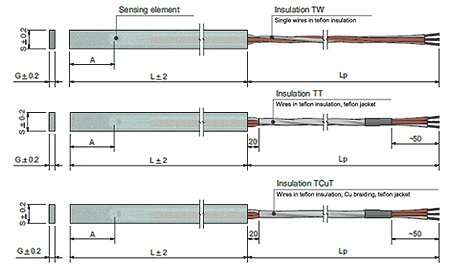

cable insulation
2x0,22 mm2; Threads: teflon® PFA; Jacket: teflon® PFA
3x0,22 mm2; Threads: teflon® PFA; Jacket: teflon® PFA
3x0,22 mm2; Threads: teflon® PFA; Screen: Cu braiding; Jacket: teflon® PFA
4x0,22 mm2; Threads: teflon® PFA
4x0,22 mm2; Threads: teflon® PFA; Jacket: teflon® PFA
4x0,22 mm2; Threads: teflon® PFA; Screen: Cu braiding; Jacket: teflon® PFA
6x0,22 mm2; Threads: teflon® PFA; Screen: Cu braiding; Jacket: teflon® PFA
3x0,50 mm2; Threads: teflon® FEP
3x0,50 mm2; Threads: teflon® FEP; Screen: Cu braiding; Jacket: teflon® FEP
4x0,50 mm2; Threads: teflon® FEP
4x0,50 mm2; Threads: teflon® FEP; Screen: Cu braiding; Jacket: teflon® FEP
6x0,50 mm2; Threads: teflon® FEP
6x0,50 mm2; Threads: teflon® FEP; Screen: Cu braiding; Jacket: teflon® FEP
8x0,50 mm2; Threads: teflon® FEP
8x0,50 mm2; Threads: teflon® FEP; Screen: Cu braiding; Jacket: teflon® FEP

Information

Product Type
2x Pt100
2x Pt500
2x Pt1000
Ni1000
Pt100
Pt500
Pt1000
Number of threads
2
3
4
Maximum operating temperature
180°C
Precision
Class A + -0.15 ° C
Class B + -0.3 ° C
Model
Wired probe

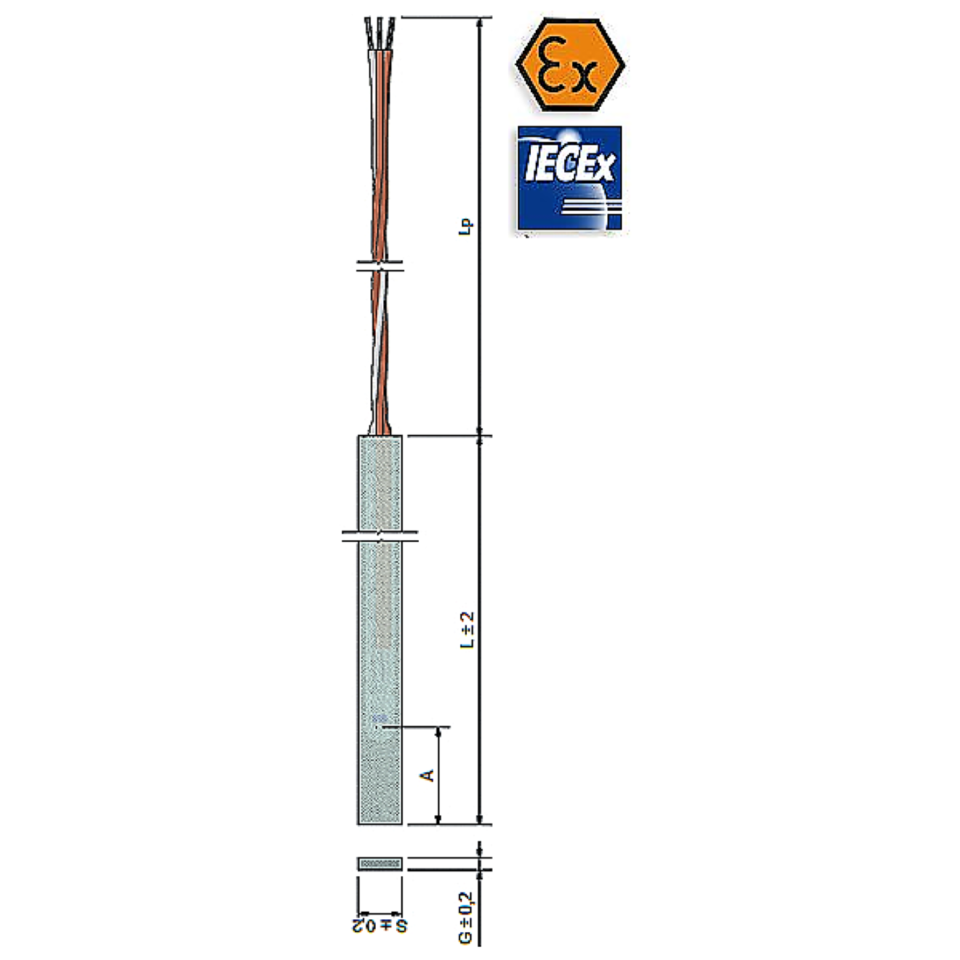

Dimension A
40 mm
60 mm
Dimension S
6 mm
8 mm
10 mm
Dimension L
80 mm
100 mm
150 mm
200 mm
250 mm
500 mm
Dimension G
2.5 mm
2 mm
3 mm
Certification
ATEX EXI
Cable length
1000 mm
2000 mm
5000 mm
