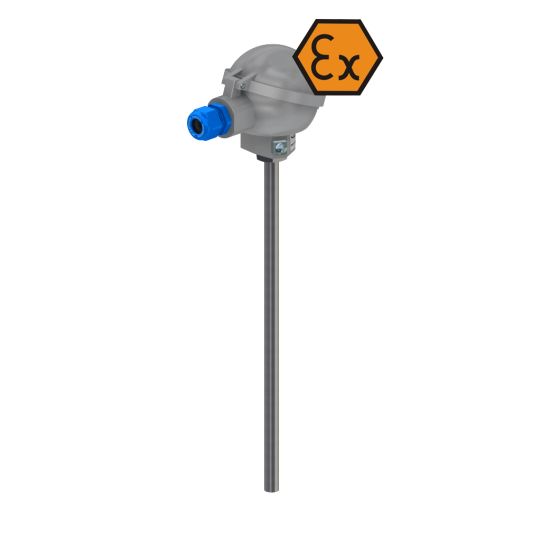

Connection head resistance thermometer with flange and reduction - ATEX explosion-proof

Features

• Single and dual RTD
• Interchangeable mineral insulated measuring insert
• Machined solid glove well (drilled) suitable for high pressures
• Thermowell diameters: customized, according to customer specifications
• Thermowell material: stainless steel 1.4541 (AISI321) or other
• ATEX cable gland I M2, II GD, IP65 (cable diameter Ø5..10mm)
• Output signal: RTD or 4..20 mA (option)




Assembly instructions

Signed sensors ex.jpg II 1/2G IIC T6 ÷ T5 Ga/Gb  et ex.jpg II 1/2D Ex ta/tb IIIC TX Da/Db  have been designed for temperature measurement in all gas, liquid, mist and dust explosion zones. In zone 0 or 20 can only be a protection tube. The connection head can only be in zones 1 (21) or 2 (22). The boundary between the zones is the threaded connection.

Signed sensors ex.jpg II 2G IIC Tx Gb  et ex.jpg II 2D Ex tb IIIC TX Db   have been designed for temperature measurement in zones 1 (21) and 2 (22).

Description

The sensor consists of an interchangeable measuring insert, a drilled thermowell, a neck and an aluminum connection head where the mounting of a temperature transmitter with a 4-20 mA output signal / HART® or Profibus®PA is possible.

The measuring insert is the replaceable part of the complete sensor which reduces the time and cost of maintaining the measuring device installed in the object. The spring-loaded attachment of the measuring insert provides perfect pressure at the bottom of the protection tube, reduces reaction time to temperature changes and increases measurement accuracy and reduces natural vibrations, thus avoiding mechanical and electrical faults .

The length and design of the thermowell, the connection head as well as the type and number of sensors, the accuracy and the connection method can be individually selected for the respective application.

Temperature transmitter (option)

The transmitter is mounted inside the sensor connection head, directly on the measuring insert.

	Type GW1	aluminum, M20x1,5 cable gland
	Type GW2	aluminum, 2 x cable gland M20x1,5
	Type GW3	aluminum, M20x1,5 cable gland, with window for local LED display (LPI-02)
	Type GW4	aluminum, 2 x cable gland M20x1,5, with window for local LED display (LPI-02)
	Type S1	stainless steel, M20x1,5 cable gland
	Type S2	stainless steel, 2 x cable gland M20x1,5
