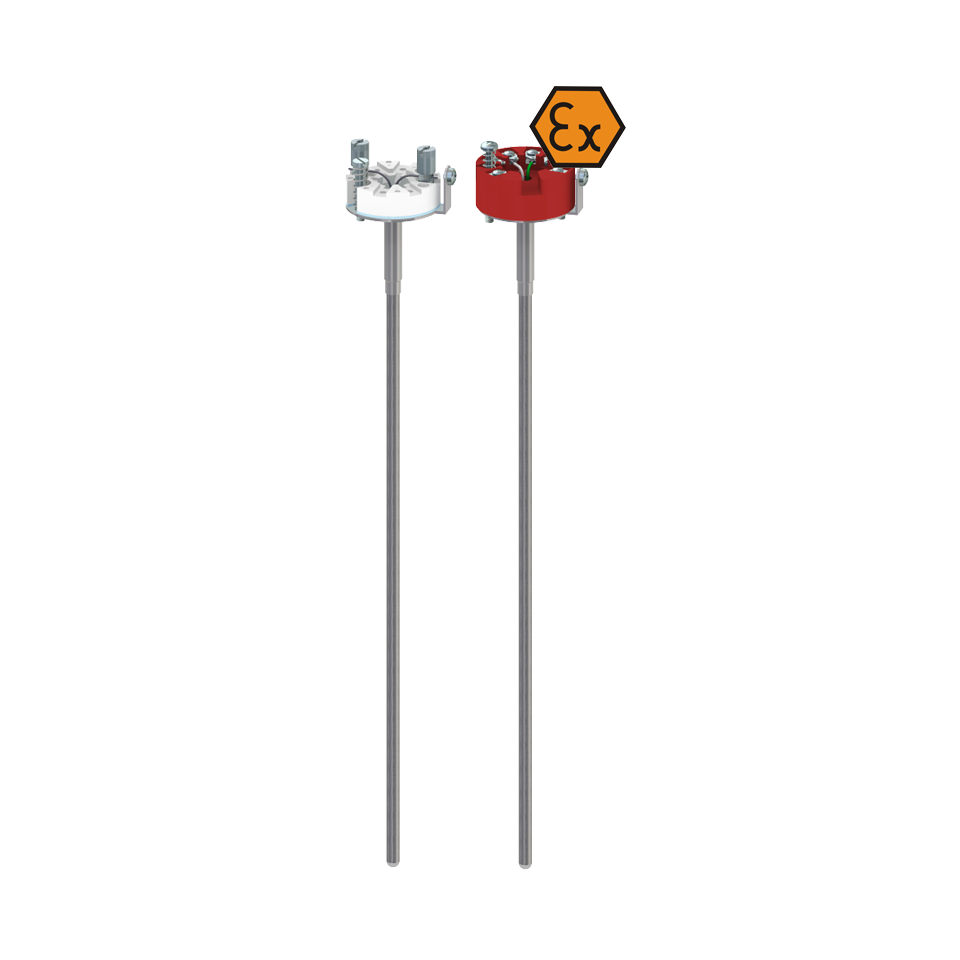

Explosion-proof ATEX thermocouple measuring insert

Reference: GXD-W2LR / GXD-APW2LR

Explosion-proof ATEX thermocouple measuring insert
  • Design temperature range:
    Type K (NiCr-Ni): -40..+1200°C
    Type J (Fe-CuNi): -40..+700°C
  • Technological process installations in all industries
  • Installation in hazardous areas:
    Gases, vapors, mists (G): Zone 0, 1, 2
    Dust (D): Zone 20, 21, 22
    Mining: M2
Delivery in 3 to 5 weeks

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "Explosion-proof ATEX thermocouple measuring insert"

Features

  • Single and double TC
  • Made of mineral insulated cable (vibration resistant)
  • Standard sheath material: AISI321 (1.4541) stainless steel *
  • Spring-loaded measuring insert provides ideal contact with the outer thermowell
  • The temperature transmitter can be installed in place of the terminal block
  • Output signal: TC or 4..20 mA (option)


Description

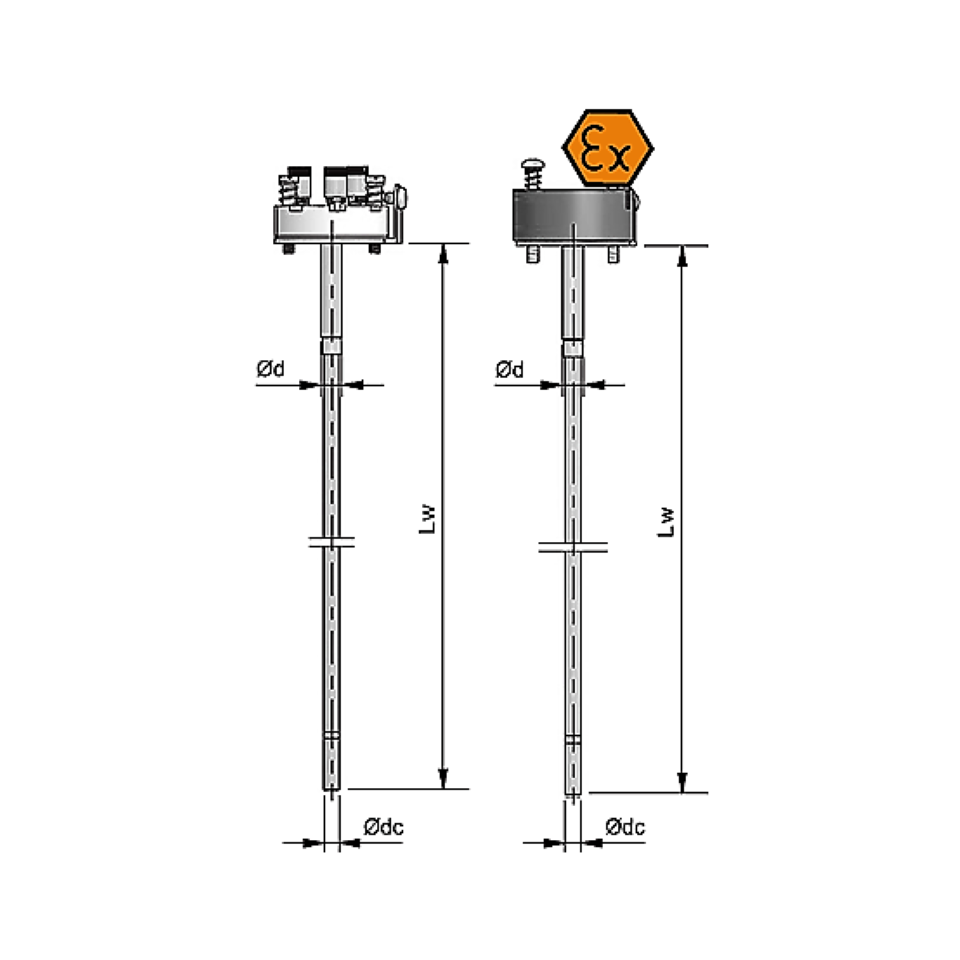

The thermocouple measuring inserts described here are designed to be installed in a protective assembly. Operation without a thermowell is not recommended. These measuring inserts are made from a flexible, mineral-insulated sheathed cable. The sensor is mounted in a rigid tube at the end of the measuring insert. In addition to being flexible, this model has exceptional resistance to vibrations.

The screw nut placed on the ceramic block allows a comfortable connection with the connecting cable.

This model is spring loaded to ensure that the measuring insert is firmly seated on the bottom of the thermowell, which provides:

  • fast response time,
  • length compensation (+/- 10 mm),
  • reduced vibrations inside the thermowell

General

  • Reference GXD-W2LR / GXD-APW2LR
  • Name Explosion-proof ATEX thermocouple measuring insert

Features

  • Product Type 2x Thermocouple
    Thermocouple
  • Maximum operating temperature 700°C
    1200°C
  • Diameter 3 mm
    4.5 mm
    6 mm
    8 mm
  • Model Terminal block probe
  • Thermocouple type J
    K
  • Certification ATEX EXD
  • Cable length With terminal block
