INDOOR RESISTANCE TEMPERATURE SENSOR KNS100

Senosr KNS 100 temperature series

Sensitive element type all types

Temperature difference

-40 ° C to 100 ° C

Protection class IP 30 '' according to EN 60529

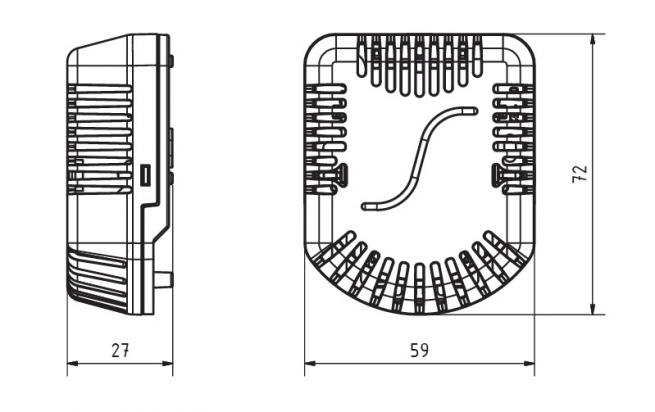

Connection head diameter

71,9 x 59 x 27 mm

LEXAN connection head material (in accordance with EN 45545-2)

Recommended wire cross section 0,35 to 1 mm2

Response time τ0,5 <8 s (in running water at 0,4 ms-1)

Isolation resistance

> 200 MΩ at 500 VDC, temperature 25 ° C ± 3 ° C, humidity <80%

Average life ≈ MTTF * 1,2 x 105 h - based on a theoretical calculation

* Under the environmental and operational conditions specified in the approved test methodology.

Tests

Shock and vibration tests

category 1, class B according to EN 61373

Insulation test 1,5 kVDC for 1 minute according to EN 50155

Fire resistance

according to EN 45545 (possible according to NFPA 130)

Note: The manufacturer reserves the right to modify the design and technical characteristics of the products. For actual information, please always contact your dealer.

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "KNS100 INDOOR RESISTANCE TEMPERATURE SENSOR"

The KNS 100 series of temperature sensors are designed for measuring the temperature of gaseous substances in spaces protected against water. In the application segment of railway vehicles, sensors are used to measure the temperature in the passenger compartments of train units and wagons and are part of the temperature control system.

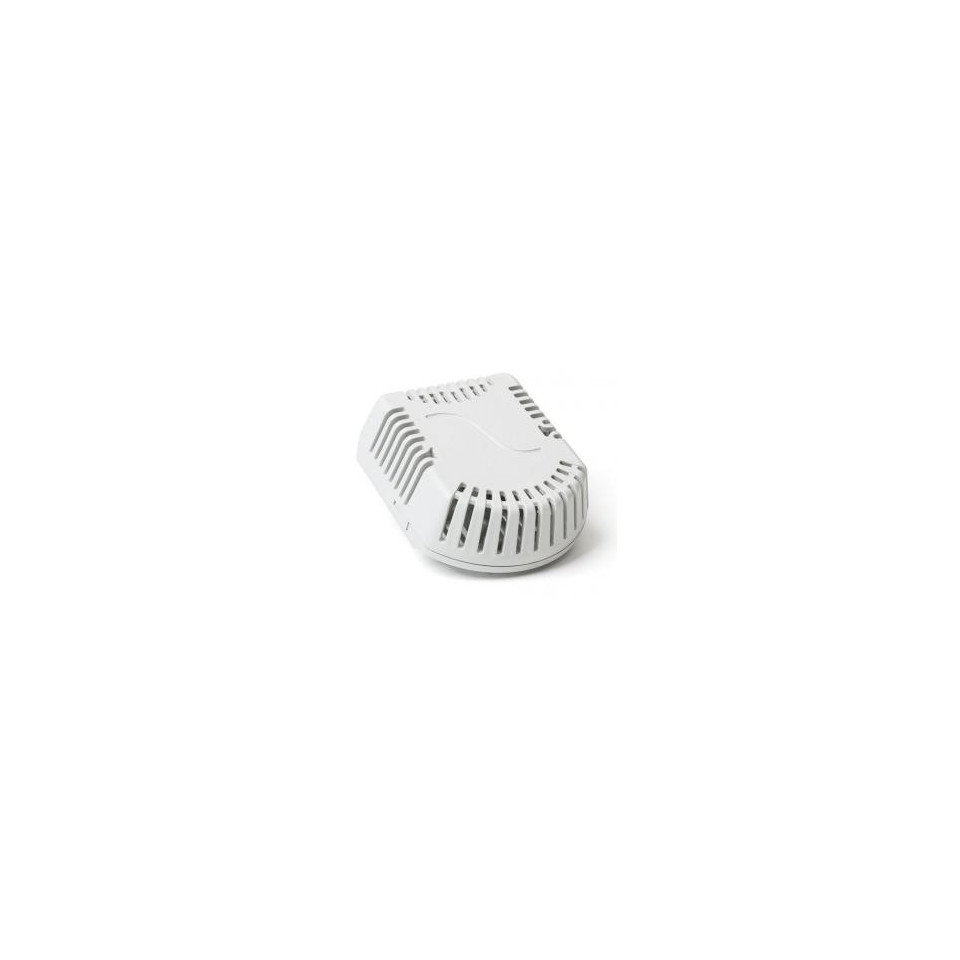

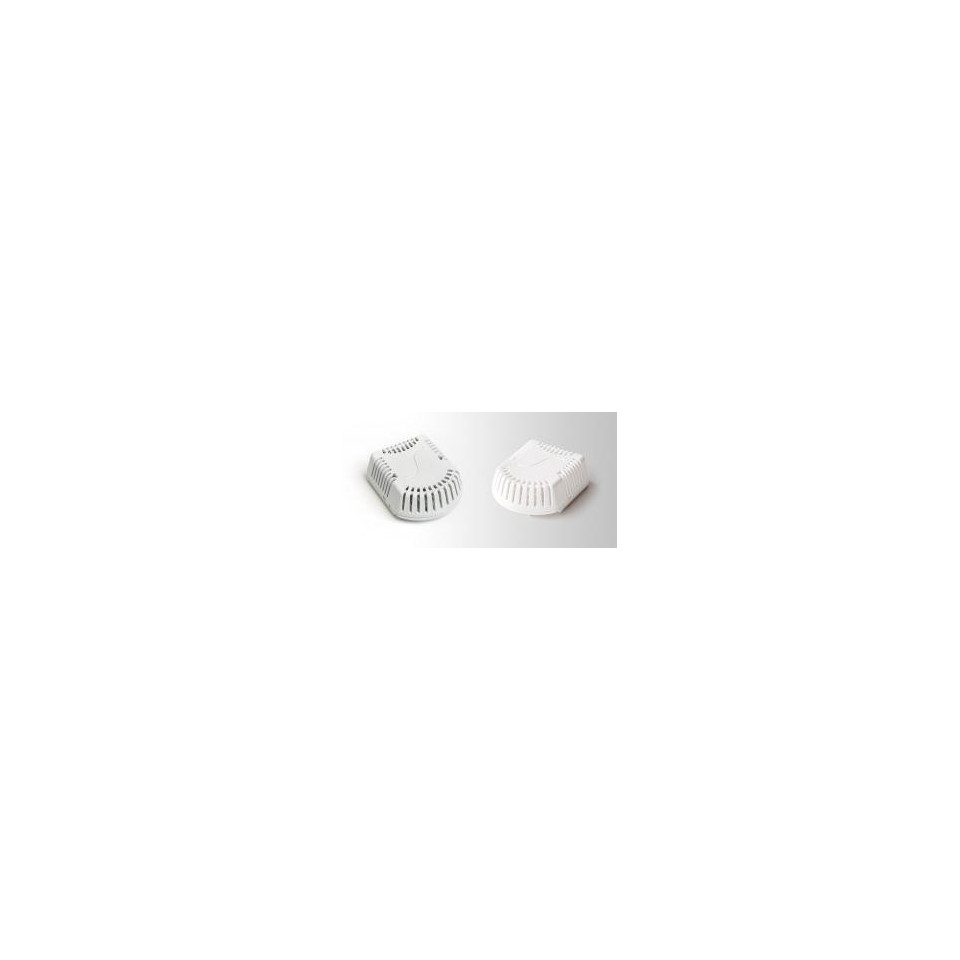

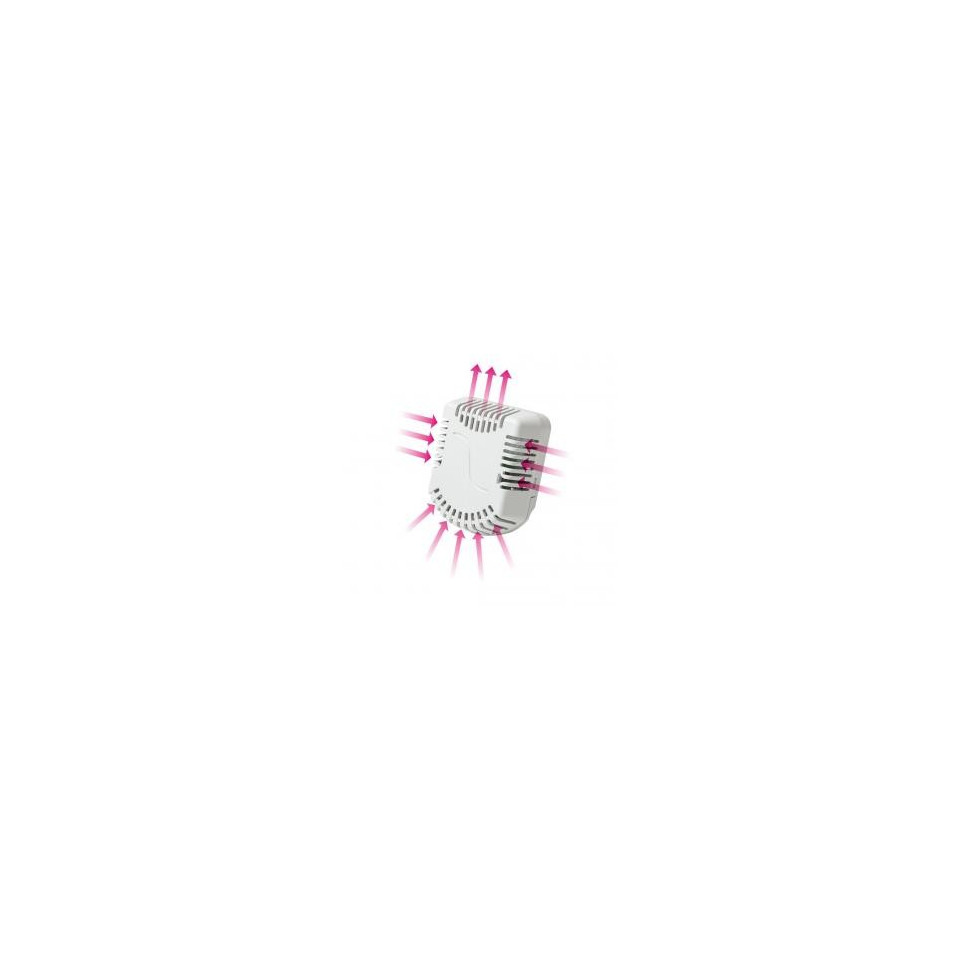

The sensors consist of the ribbed plastic head, where the sensing element is placed. The maximum operating temperature range of the sensor is -40 to 100 ° C. The sensors can be used for all control systems compatible with the types of detection elements listed in the technical parameters table. The sensor complies with the protection index IP 30 according to standard EN 60529, as amended. Appropriate design and high-quality materials ensure that the sensors are not disturbing, even in interiors with high aesthetic requirements. You can choose the color of the box white or gray.

The sensors are intended to operate in a chemically non-aggressive environment.

TESTS, DECLARATION, CALIBRATIONS

Type tests are carried out by a notified body according to standard EN 50155, as amended, Railway applications - Electronic equipment used on rolling stock, Art. 12.2.9, 12.2.11

- Insulation test according to EN 50155, as amended

- Shock and vibration tests according to EN 61373, as amended

The material of the plastic box and the PCB meets a set of requirements for R 24 materials according to Table 5 for the fire risk level HL1-HL2-HL3 of the standard EN 45545-2, as amended. . May be supplied with materials that meet NFPA 130 fire safety standard, as amended.

- Class-leading precision (except for Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, NTC 20 kΩ)

- possibility of coating non-standard temperature sensors (DALLAS, TSiC, KTY, SMT, TC etc.)

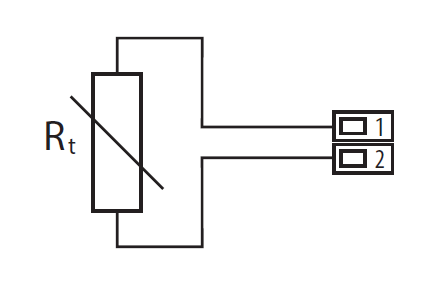

- possibility of 3-wire or 4-wire connection

General

  • Reference GKNS100R
  • Name INDOOR RESISTANCE TEMPERATURE SENSOR KNS100
