KPTS 410A ET KPTS 410B probe

Reference GKPTS410A / BR

Sensor type KPTS 410A and KPTS 410B

Type of sensitive element Pt 50/3850 and Pt 50/3850, output Pt 100/3850

Temperature difference

-40 ° C to 100 ° C

Protection class IP 65 according to EN 60529

Shank diameter 6 ± 0,1 mm

Length of the stem

25 millimeters

Rod material stainless steel DIN 1.4301

Connection head material

LEXAN (compliant with standard EN 45545-2)

Response time τ0,5 <9 s (in running water at 0,4 ms-1)

Isolation resistance

> 200 MΩ at 500 VDC, temperature 25 ° C ± 3 ° C, humidity <80%

Average life ≈ MTTF * 1,2 x 105 h - based on a theoretical calculation

* Under the environmental and operational conditions specified in the approved test methodology.

Tests

Shock and vibration tests

category 1, class B according to EN 61373

Insulation test 4 kVDC for 1 minute according to EN 50155

Fire resistance

according to EN 45545 (possible according to NFPA 130)

Product features KPTS 410A ET KPTS 410B probe

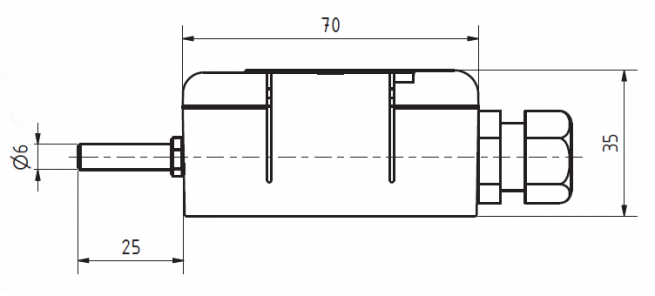

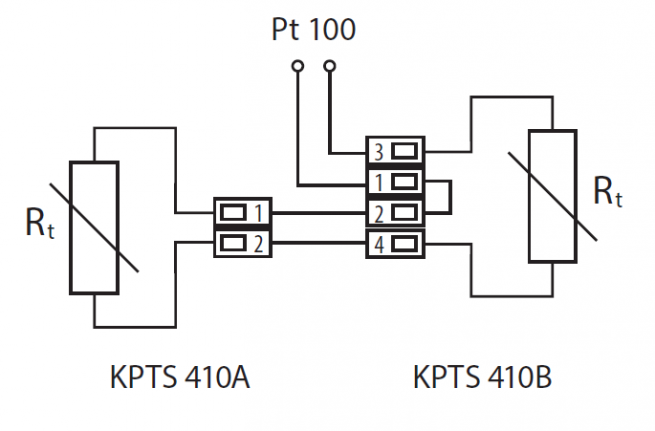

The set of special temperature sensors KPTS 410A and KPTS 410B has been developed to measure the air temperature in gel battery cabinets of high-speed wagons in the application segment of rail vehicles. Due to the matched location of the battery cabinets, they are connected in series to the evaluation element, indicating the average temperature in the two cabinets. The serial connection of the KPTS 410A and KPTS 410B allows an internal configuration of the terminals of the KPTS 410B head so that there is no need for a specific interconnection element. The Free Wago 222 terminal block is part of the KPTS 410B temperature sensor to connect the shield of the input cable and the connection cable.

The sensors consist of the plastic head, where a printed circuit board is placed with a terminal block to connect the power cable or the series connection of the two sensors and with a stainless steel rod, in which the temperature sensing element. The sensors can be used for all control systems compatible with the types of detection elements listed in the technical parameters table. The sensor conforms to the degree of protection IP 65 according to standard EN 60529, as amended.

The sensors are intended to operate in a chemically non-aggressive environment.

TESTS, DECLARATION, CALIBRATIONS

Type tests are carried out by a notified body according to standard EN 50155, as amended, Railway applications - Electronic equipment used on rolling stock, Art. 12.2.9, 12.2.11

- Insulation test according to EN 50155, as amended

- Shock and vibration tests according to EN 61373, as amended

The product meets the parameters in accordance with EN 45545-2, as amended, Fire protection of railway vehicles - Part 2: Requirements for the fire behavior of materials and components. May be supplied with materials that meet NFPA 130 fire safety standard, as amended.
