Reference GKSTHPV102R

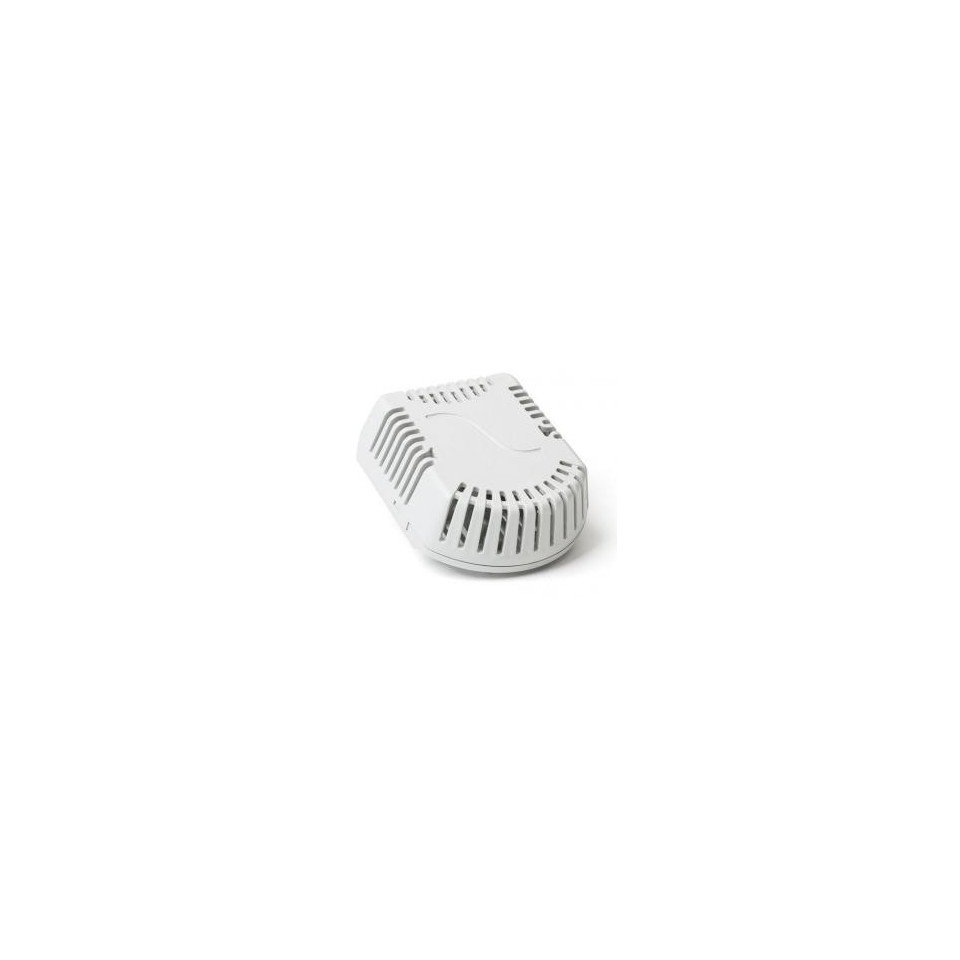

Sensor type KSTHPV 102

Measured values ​​temperature, relative humidity, atm. pressure, VOC

Temperature measurement range -30 ° C to 70 ° C

-40 ° C to 80 ° C short term

Temperature measurement accuracy ± 0,5 ° C at 25 ° C temperature

± 1,0 ° C in temperature from 0 to 65 ° C

Relative humidity measurement range from 0 to 95%

Relative humidity measurement accuracy ± 3% in the range of 20 to 80%

± 4,5% in the range of 0 to 19% and 81 to 95%

VOC measurement range (IAQ index) * 0 to 500

VOC measurement accuracy * ± 15%

Atmospheric pressure measurement range * 300 to 1100 hPa

Atmospheric pressure measurement accuracy

(in the temperature range 0 to 65 ° C,

in the range 300 to 1100 hPa) absolute deviation ± 0,6 hPa

long term temperature stability: ± 1,0 hPa

Atmospheric pressure measurement accuracy

(in a temperature range of 25 to 45 ° C,

in the range 700 to 1100 hPa) absolute deviation ± 0,12 hPa

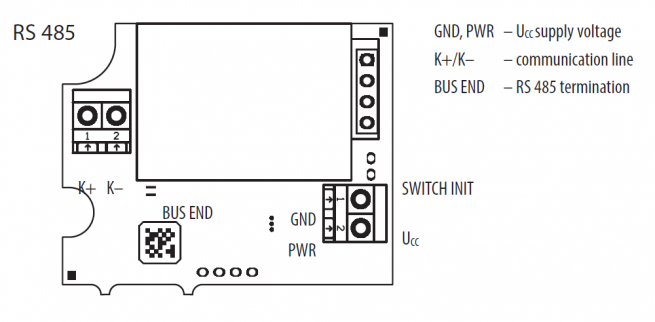

RS 485 / MODBUS RTU output signal

Supply voltage U 15 to 30 VDC

Nominal supply voltage Un 24 VDC

Maximum consumption: 500 mW

typical: 250 mW

Protection class IP 30 according to EN 60529

Head dimension 71,9 x 59 x 27 mm

LEXAN head material (conforms to EN 45545-2)

Recommended wire cross section 0,14 to 1 mm2

Min weight 35 g

* The measuring ranges and accuracies given for the individual sensors refer to the operating conditions when the supply voltage is connected.

Tests

Shock and vibration tests category 1, class B according to EN 61373

Electromagnetic compatibility according to EN 50121-3-2

Insulation test 1,5 kVDC for 1 minute according to EN 50155

Fire resistance

according to EN 45545 (possible according to NFPA 130)

Product features TEMPERATURE, RELATIVE HUMIDITY, PRESSURE AND PARTICLE SENSORS - MODBUS RS 485 KSTHPV 102

Temperature, Relative Humidity, Atmospheric Pressure and VOC Sensor - The KSTHPV 102 is designed to measure carbon dioxide concentrations, air temperature, relative air humidity, atmospheric pressure and the concentrations of volatile organic compounds. In the segment of railway vehicle applications, it is used to measure all variables in passenger compartments of train units and wagons and is part of the control system for temperature, relative humidity, atmospheric pressure and air quality.

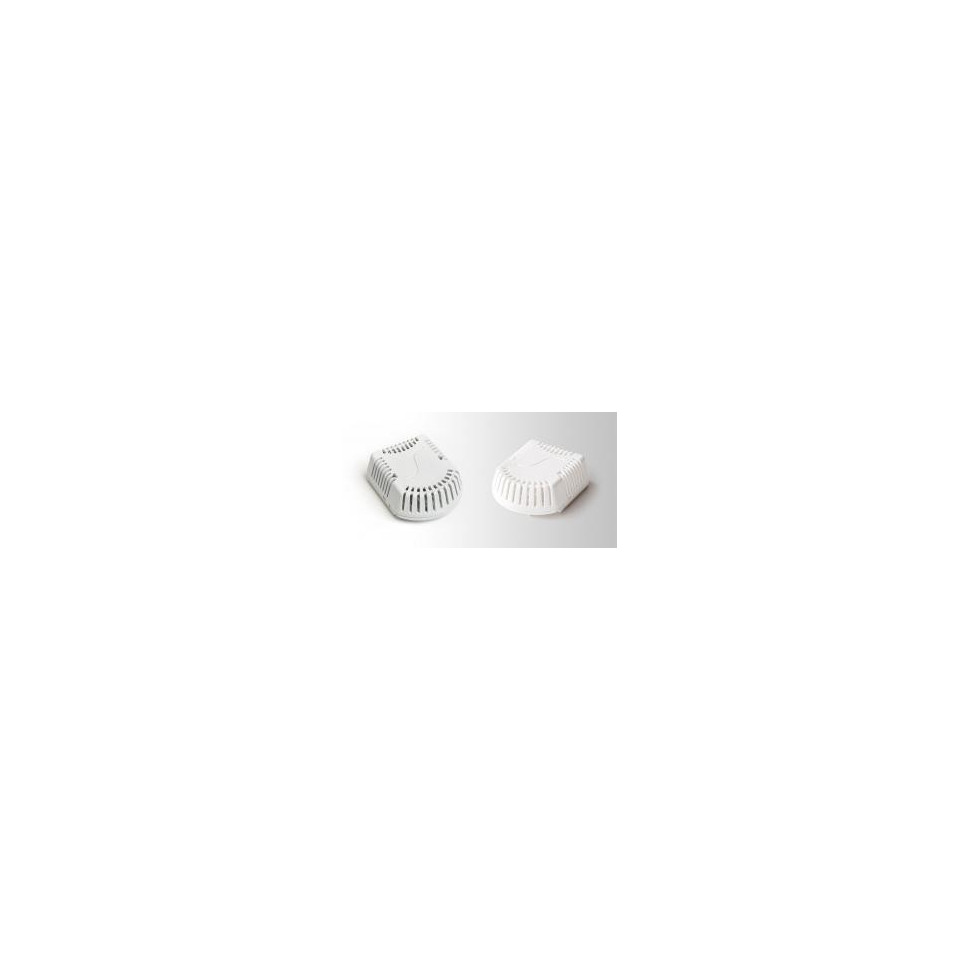

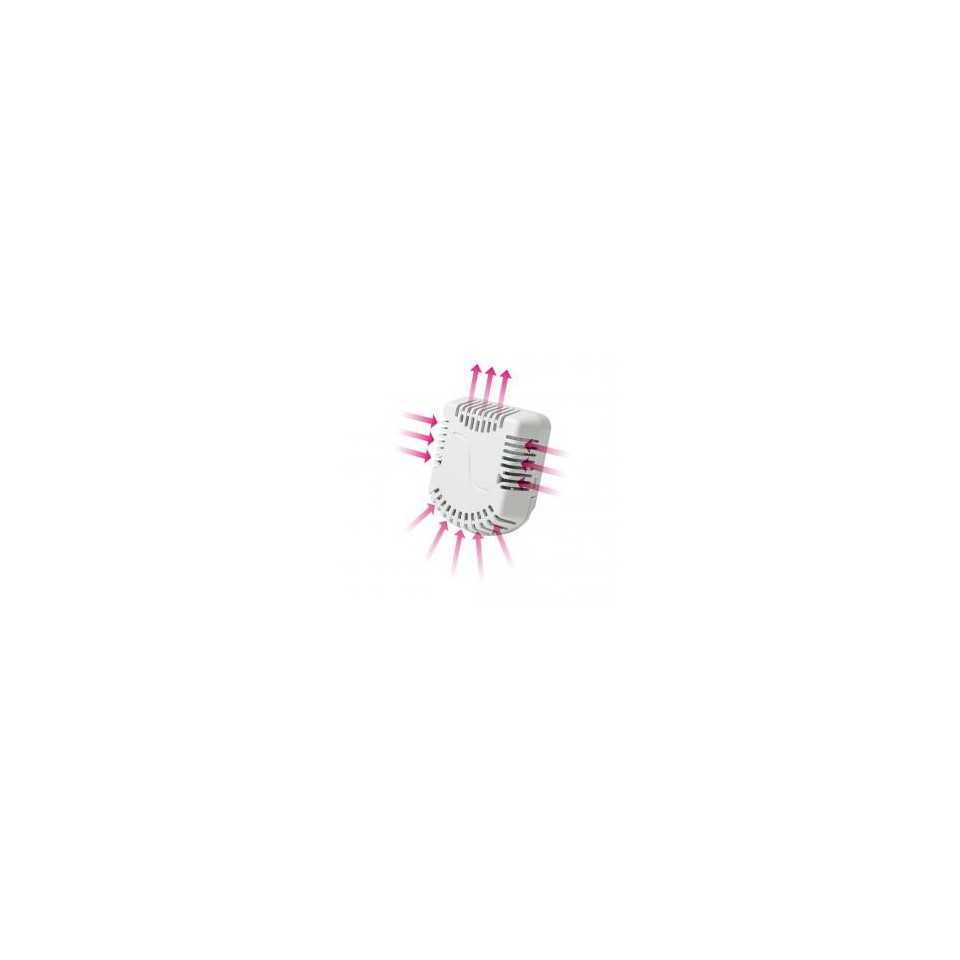

The KSTHPV 102 temperature, relative humidity, atmospheric pressure and VOC sensor consists of a plastic ribbed head containing a printed circuit board with the individual sensors and a converter to establish communication via the RS 485 bus. Temperature, relative humidity, atmospheric pressure and VOCs are measured by a common internal sensing element, the signal of which is processed in a microprocessor and converted into a MODBUS RTU output signal. The KSTHPV 102 temperature, relative humidity, atmospheric pressure and VOC sensor meets the degree of protection IP 30 according to CSN EN 60529. The pleasant design and high-quality materials ensure that the temperature sensor, Relative humidity, atmospheric pressure and VOCs of the KSTHPV 102 does not appear intrusive even in interiors with high aesthetic requirements. You can choose the color of the box white or gray. It is recommended to install the KSTHPV 102 temperature, relative humidity, atmospheric pressure and VOC sensor on an interior wall at a height of 1,5 m, in areas with moving people, not exposed to direct sunlight and not influenced by heat from walls, heat sources or lighting. The KSTHPV 102 temperature, relative humidity, atmospheric pressure and VOC sensor is designed to operate in a chemically non-aggressive environment; its use should be chosen according to the temperature and chemical resistance of the head and the individual sensors. Correct operation of the sensor requires the following operating conditions:

Ambient temperature around the sensor: -30 ° C to 70 ° C, for short periods -40 to 80 ° C

Ambient relative humidity: 0 to 95% (non-condensing humidity)

Atmospheric pressure: 87 to 110 kPa

TESTS, DECLARATION, CALIBRATIONS

Type tests are carried out by a notified body according to standard EN 50155, as amended, Railway applications - Electronic equipment used on rolling stock, Art. 12.2.9, 12.2.11

- Electromagnetic compatibility according to EN 50121-3-2, as amended

- Insulation test according to EN 50155, as amended

- Shock and vibration tests according to EN 61373, as amended

The product meets the parameters in accordance with EN 45545-2, as amended, Fire protection of railway vehicles - Part 2: Requirements for the fire behavior of materials and components. May be supplied with materials that meet NFPA 130 fire safety standard, as amended.
