DIRECT CURRENT AND VOLTAGE INSULATED CONVERTER FOR RAILWAY APPLICATIONS PX24 / R

Reference GPX24/RR

Delivery in 3 to 5 weeks

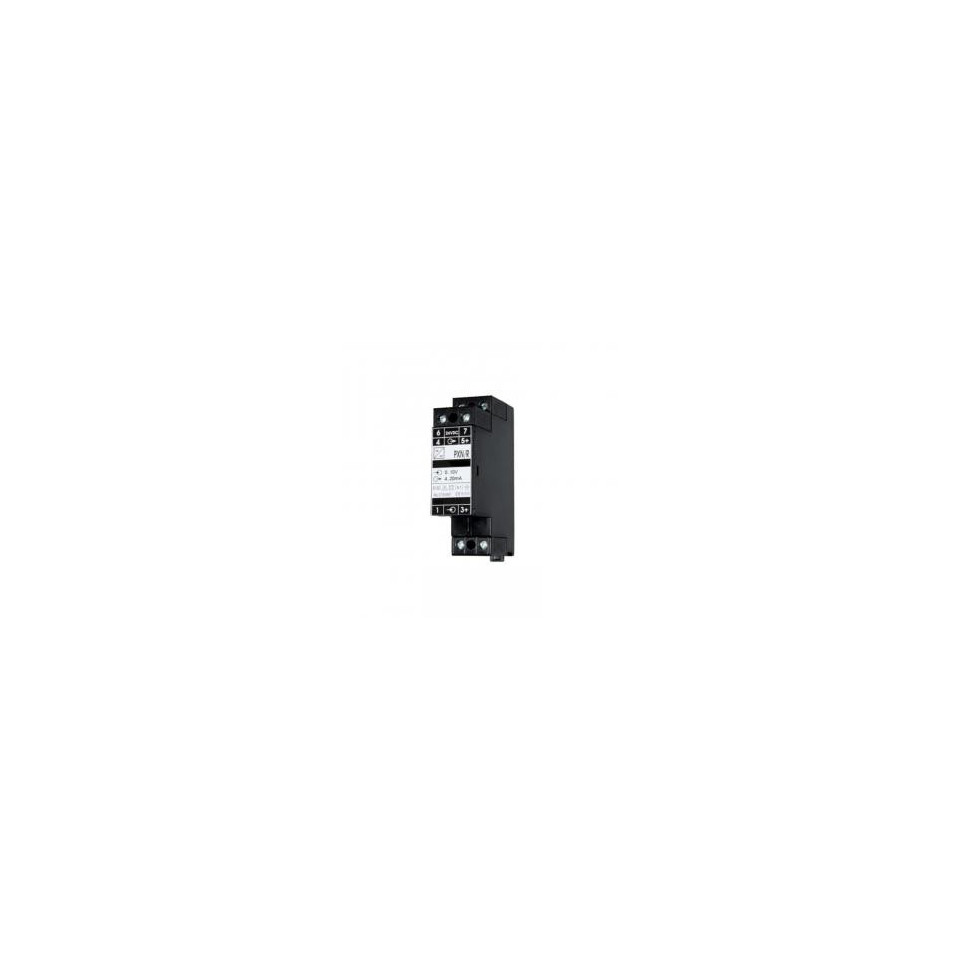

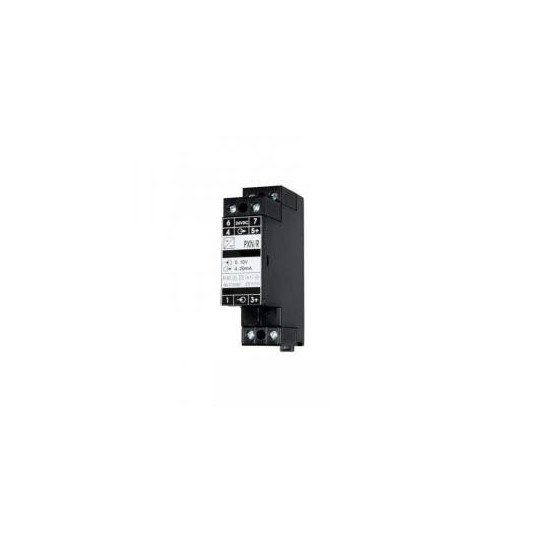

PX24 / R type converter

Operating temperature range -25 ° C to 70 ° C

Storage temperature range -40 ° C to 80 ° C

Supply voltage 12 to 30 VDC

Uninterruptible power supply: class S1 art.: 5.1.1.2

Max consumption 1,5 VA

Input signal voltage: ± 10 mV to ± 1500 V

current: from ± 50 uA to ± 10 A

4 to 20 mA output signal

Balancing of the output loop min. 15 V (Rz - 750 ohm) at 20 mA

Max voltage output load 10 mA

Input resistance of voltage input typ. 100 kohm / V

Current input voltage drop <0,54 V

Input current limit typ. 30 mA (electronic fuse)

Max. transfer error <0,1%

Linearity error <0,1%

Temperature error <0,01% / ° C

Time constant 1 ms, up to 300 ms on request

Protection box / terminal block IP 40 / IP 20

Weight 90 g

Environmental pollution degree PD1, PD2

Max operating voltage By insulation

wiring overvoltage category

OVI

OVI

Insulation level OVIII:

the base

make 1000V RMS

make 1000V RMS

make 1000V RMS improved

make 1000V RMS

make 600V RMS

make 300V RMS

Air distance and surface

input / output + power supply

output / power

at least 8 mm

at least 6,5 mm

Test voltage Ua input / output 5 kV RMS

Rated impulse voltage Uni: 8 kV

Tests

Elektronic equipment used on rolling stock according to EN 50155

Shock and vibration tests according to EN 61373

Electromagnetic compatibility according to EN 50121-3-2

Insulation test according to EN 50124-1

Fire resistance

according to EN 45545-2 + A1

Product features DIRECT CURRENT AND VOLTAGE INSULATED CONVERTER FOR RAILWAY APPLICATIONS PX24 / R

The PX24 / R module is designed for measuring direct current or voltage signals from rail vehicles. It converts the input signal into a unified isolated output signal 4..20 mA, 0..20 mA, 0..10 V, 0 .. ± 10 V or 0..20mA. It can process DC signals within a voltage range of ± 10 mV to ± 1500 V and a current range of ± 50 uA to ± 10 A. The module is generally used to measure the signals of medium voltage shunts and dividers. The output of the converter is an active signal isolated from the input and the auxiliary supply.

PX24 / R output loop powered.

measures and isolates an input direct current or voltage signal

 it activates the bipolar input and output signal

nominal pulse voltage Uni: 8kV

air distance and inlet / outlet surface: min. 8 mm

test voltage Ua input / output: 5kVRMS

auxiliary power supply 16-300V DC 90-250V AC

DIN 35 rail installation

conversion accuracy <0,1%

time constant 1ms, up to 300ms on request

TESTS, DECLARATIONS, CALIBRATIONS

Electronic equipment used on rolling stock according to standard EN 50155, as amended

Electromagnetic compatibility according to standard EN 50121-3-2, as amended

Insulation coordination according to standard EN 50124-1, as amended

Shock and vibration tests according to standard EN 61373, as amended

Fire protection according to standard EN 45545-2 + A1, as amended, meets all the requirements for monitored products according to table 2 - the printed circuit meets all of the R24 requirements - the housing meets all R26 requirements

These products can interest you

Delivery in 3 to 5 weeks
CAN KST Temperature Converters

CAN KST Temperature Converters

KST converter type CAN Input signal Pt 1000/3850 CAN / CANopen output signal - CiA DS 301 Measuring range ...
Delivery in 3 to 5 weeks

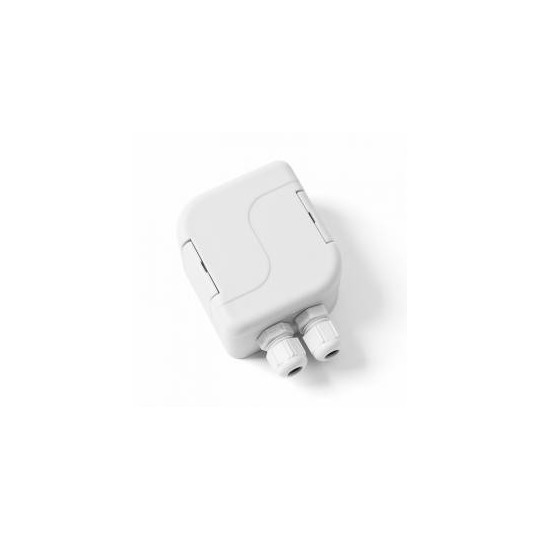

KST RS 485 temperature converters

KST RS 485 temperature converters

Converter type KST 485 Input signal Pt 1000/3850 Output signal RS 485 / MODBUS RTU Communication properties ...
Delivery in 3 to 5 weeks
KSTID CONVERTER - 4 to 20 mA

KSTID CONVERTER - 4 to 20 mA

Converter type KSTID Pt 100 KSTID Pt 1000 Input signal Pt 100/3850 Pt 1000/3850 Output signal 4 to 20 mA ...
Delivery in 3 to 5 weeks

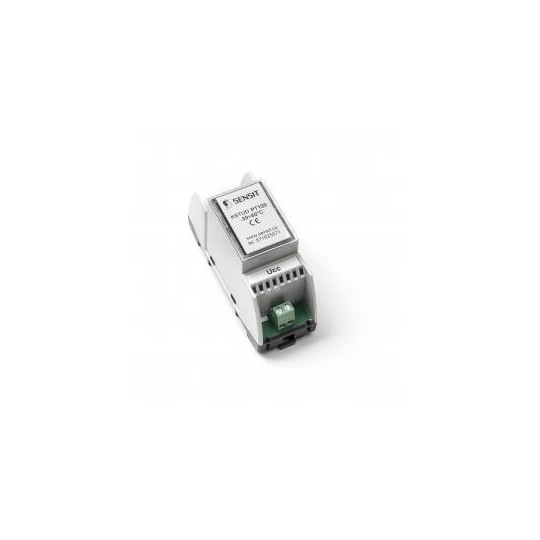

CONVERTER KSTUD -0 TO 10V
