Temperature sensor - plastic connection head

Temperature sensor - plastic connection head
  • Resistance temperature sensor.
  • Measures the contact temperature of liquid or gaseous substances.
  • Plastic connection head, provided with a cable outlet.
  • Range of -30°C and 150°C.
  • Easy to mount thanks to the “S-head” design.
Delivery in 3 to 5 weeks

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

Product details about "Temperature sensor - Plastic connection head"

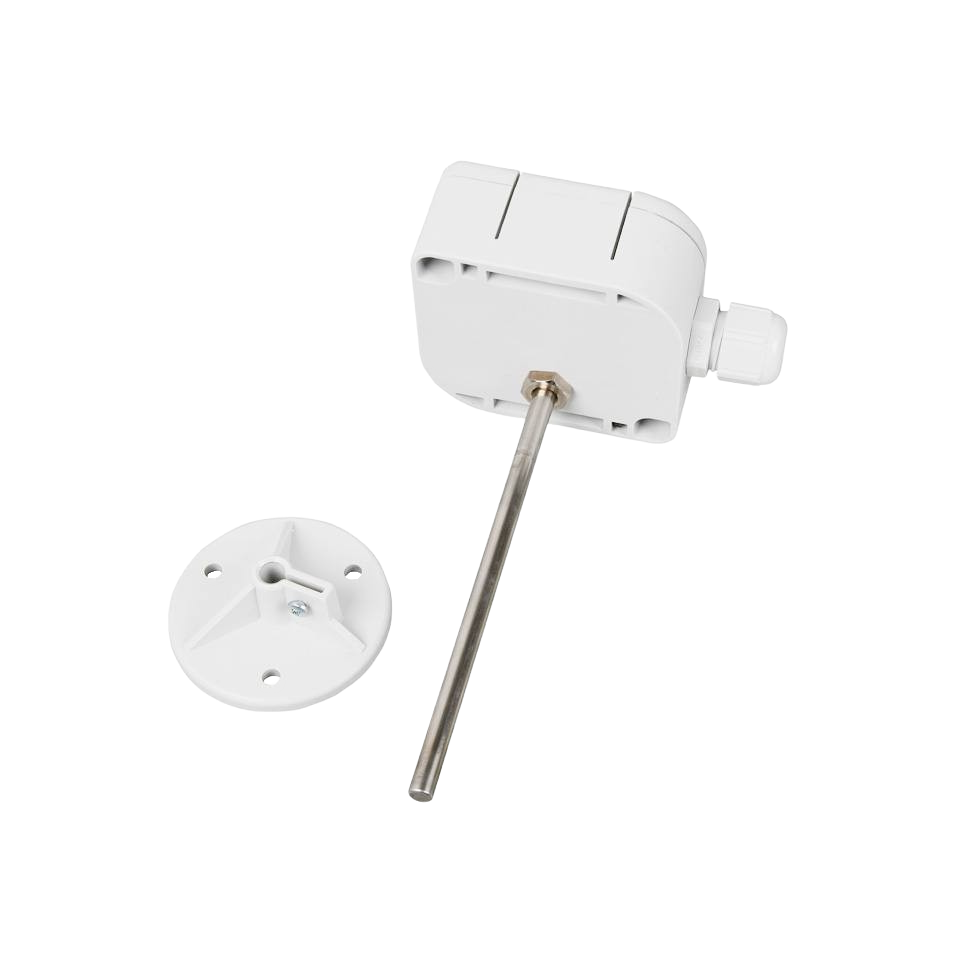

Probe with plastic connection boxProbe with plastic connection box

DESCRIPTION AND APPLICATION

These resistance temperature sensors are designed to measure the contact temperature of liquid or gaseous substances. The plastic connection head is provided with a cable outlet (the terminal block is placed in the connection head) or a connector.

La combination temperature sensor and central supportIt is suitable for temperature measurements in air conditioning ducts. The combination temperature sensor and thermowells suitable for temperature measurements in tubes.

The temperature sensor variant with welded thread is ideal for the direct measurement of fluids in pipes. The standard operating temperature range is between -30°C and 150°C.

By using a sensor with a longer rod, the upper limit of allowable temperature can be extended up to 250°C. Temperature sensors can be used for any compatible control system with the sensing element output signals or the output signals shown in the sensing element type table.

The temperature sensor is easy to mount thanks to the unique design "S-head".

ACCESSORIES

  • plastic holder
  • JS 130 stainless steel thermowell
  • K 120 central metal support
  • CONEC 43-00092 input connector
  • Connecting cable with straight RKT connector or with rectangular RKWT connector
  • Screw with collar or cutting rings - if different immersion lengths of the temperature sensor are set

DECLARATION, CERTIFICATION, CALIBRATION

  • The manufacturer provides an EU declaration of conformity.
  • Calibration - The final metrological control - comparison with standards or working instruments - is carried out for all products. The continuity of standards and work measurement instruments is ensured within the meaning of article 5 of Law No. 505/1990 on metrology. The manufacturer offers the possibility of supplying the calibrated sensors in the laboratory (according to the requirements of EN ISO / IEC 17025) or in an accredited laboratory.

Sensor type
(K - with connector)
NS 120
Ns 120K
NS 121
NS-121K
NS 122
NS-122K
NS 320
NS-320K
NS 321
NS-321K
Sensitive element type Nor 1000/5000 Nor 1000/6180 Ni 891 Nor 10000/5000 Nor 10000/6180
Measuring range -30 to 150 ° C
Maximum continuous current 1 mA 1 mA 1 mA 0.3 mA 0.3 mA

Sensor type
(K - with connector)
NS 123
NS-123K
PTS 120
PTS 120K
PTS 220
PTS 220K
PTS 320
PTS 320K
HS 120
HS 120K
Sensitive element type T1 = Ni 2226 Point 100/3850 Point 500/3850 Point 1000/3850 20 kΩ NTC thermistor
Measuring range -30 to 150 ° C - 50 to 150 ° C (ambient temperature of the connection head -30 to 100 ° C) -30 to 150 ° C
Maximum continuous current 0.7 mA 3 mA 1.5 mA 1 mA 10 mW *)

*) maximum power consumption

Sensor type
(K - with connector)
NS 520
NS-520K
NS 720
NS-720K
Notes
Sensitive element type Point 1000/3850 Pt
1000/3850
Output signal 4 to 20 mA 0 to 10 V
Measuring ranges -50 to 50 ° C
-30 to 60 ° C
0 to 35 ° C
0 to 100 ° C
0 to 150 ° C
0 to 200 ° C
0 to 250 ° C
-30 to 60 ° C
0 to 35 ° C
0 to 100 ° C
0 to 150 ° C
0 to 200 ° C
0 to 250 ° C
ambient temperature around the connection head -30 to 70 ° C
Power supply (U) 11 to 30 V DC 15 to 30 V DC recommended value 24 V DC
Load resistance 150 Ω for 12 VDC power supply
700 for 24 VDC supply
> 10 kΩ
Output signal
breaking the sensitive element
> 24 mA > 10,5 V
Output signal
- short circuit of the detection element
<3.5 mA ~0V

**) Depending on customer requirements, it is possible to provide a custom measurement range from -40 to 150 ° C; the minimum range of the range must be 35 ° C (for example, -20 to 15 ° C; -30 to 80 ° C)

OTHER PARAMETERS
Precision class Elements sensitive to Ni: class B, Δt = ± (0,4 + 0,007t), for t ≥ 0; Δt = ± (0,4 + 0,028 | t |), for t ≤ 0 in ° C;
Elements sensitive to pt: class B according to EN 60751, Δt = ± (0,3 + 0,005 | t |) in ° C
NTC 20 kΩ: ± 1 ° C for the range from 0 to 70 ° C
Measurement error for NS 520 (K), NS 720 (K) <0,6% of the measuring range, minimum 0,5 ° C
NS 840 (K) 0,5 ° C for a range with a range <100 ° C, <0,6% of the range with a range> 100 ° C

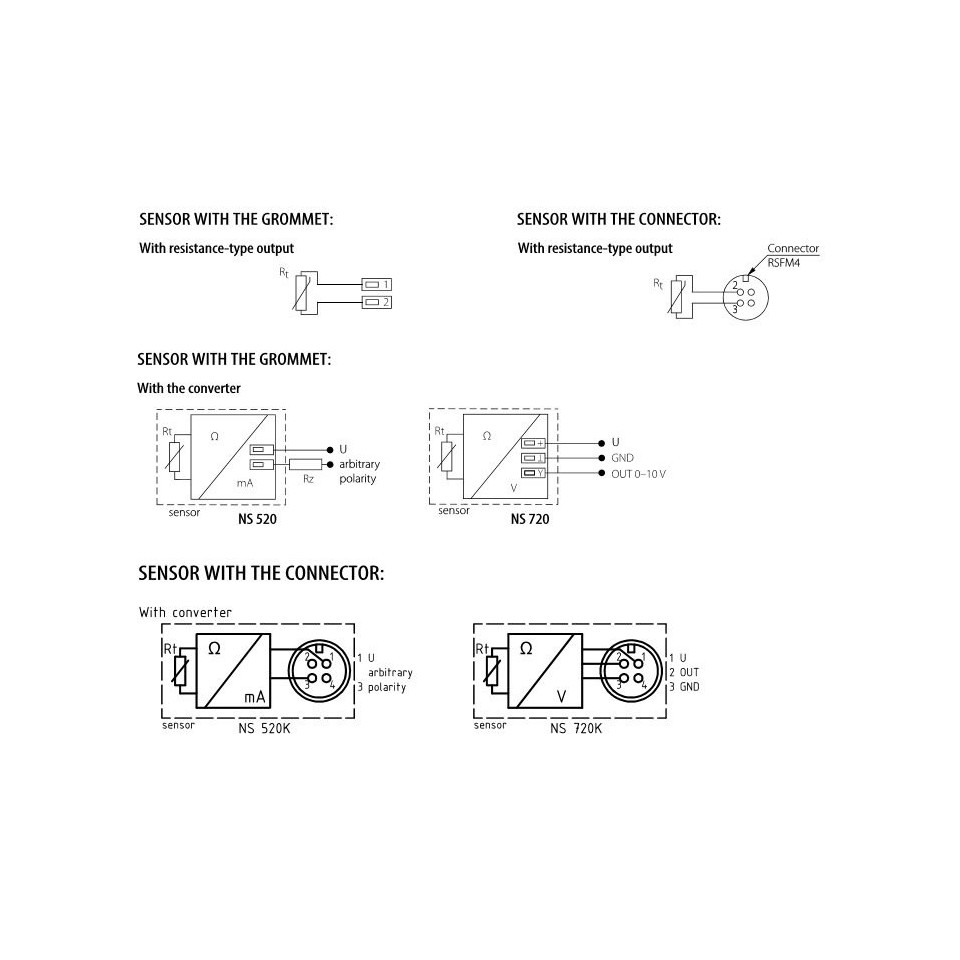

Sensor connection according to the wiring diagram
Standard length of rod L1 70, 120, 180, 240, 300, 360, 420 mm
Response time τ 0,5 <9 s (in white water at 0,4 ms -1 )
Recommended wire section -
sensors with washer
0,35 to 1,5 mm 2
Connector type in
sensors head with connector
RSFM4 - Lumberg
Isolation resistance > 200 MΩ at 500 V DC, 25 ° ± 3 ° C; humidity <85%
Ingress protection IP 65 mismatch with EN 60529
Sensor rod material DIN 1.4301 stainless steel
Connection head material POLYAMIDE
operating conditions ambient temperature:
-30 to 100 ° C; -30 to 80 ° C with a converter; -30 to 70 ° C with frequency output
relative humidity: max. 100% (at room temperature 25 ° C)
atmospheric pressure: 70 to 107 kPa
Weight about 0,15 kg


SENSOR INSTALLATION AND MAINTENANCE

WELL DETECTORS:

Before connecting the power cable, pry off the plastic connection head cover using a flat screwdriver. The input cable is connected to the terminals according to the wiring diagram through the loose eyelet. The recommended wire section is 0,35 to 1,5 mm2.

The diameter of the circular section cable can range from 4 to 8 mm. To ensure the protection value IP 65 , the grommet must be tight and the cover must be put on after connecting the input cable.

SENSORS WITH CONNECTOR:

The input cable with connector is connected to the RSFM4 connector, which is part of the sensor head. Optionally the autonomous CONEC connector 43-00092, or an input cable with a length of 5 m equipped with a straight RKT connector, or a rectangular type RKWT connector can be delivered.

To guarantee the protection value IP 65, the connectors and the sensor cover must be tightened and checked. If the input cable is laid near high voltage conductors or those supplying equipment creating a disturbing electromagnetic field (eg equipment with an inductive load), shielded cable must be used.

When using a stainless steel thermowell or stainless steel bracketthese
accessories should be placed first where the temperature will be measured. Then the sensor is inserted into the holder or pushed as far down the thermowell, and tightened with a screw.

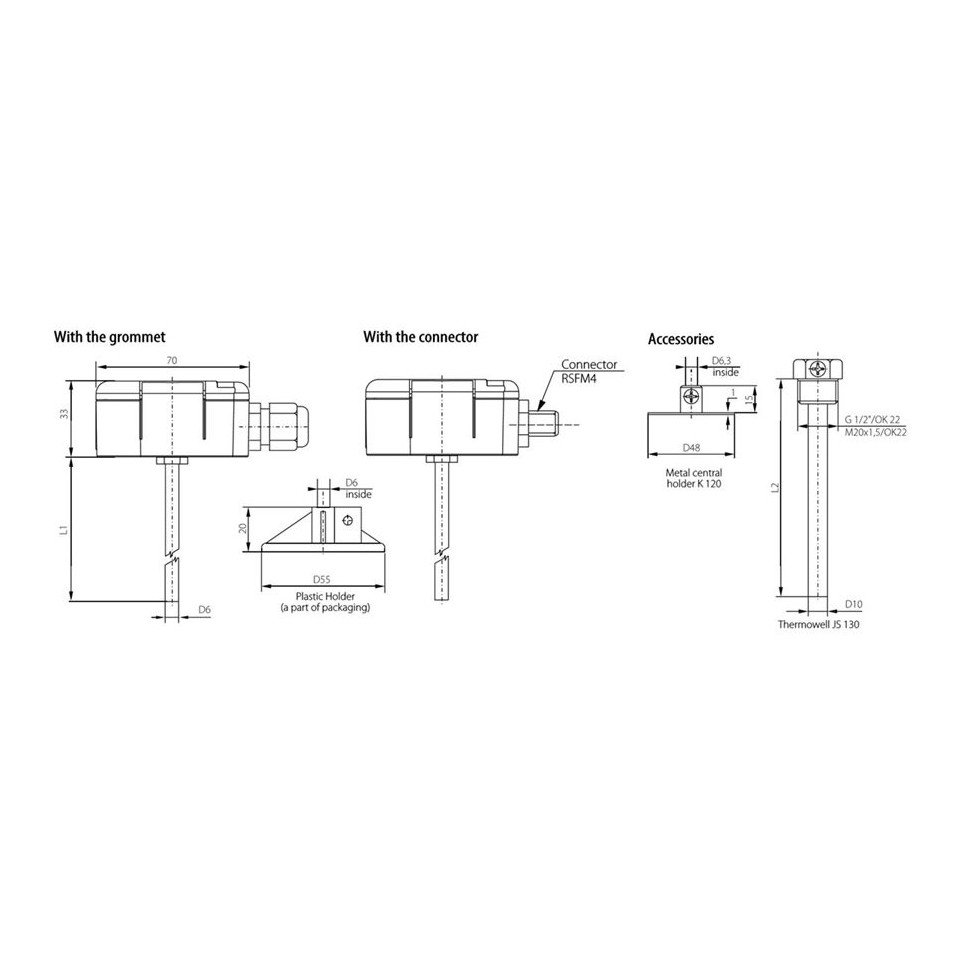

Openings for the installation of the plastic clamp must be drilled in accordance with the dimensions sketch on which the opening diameters and the distances from their centers are illustrated.

After installing and connecting the sensor to the equipment, the sensor is ready for use. The sensor does not require any special servicing or maintenance. The device can be used in any working position, but the eyelet must not be pointing upwards.

MODIFICATION AND CUSTOMIZATION


FOR MANUFACTURED STANDARD DETECTORS, THE FOLLOWING PARAMETERS CAN BE CHANGED:

  • Possibility of coating two sensitive elements
  • Ability to encapsulate non-standard temperature sensors (DALLAS, TSic, KTY, SMT, etc.)
  • Accuracy class A (except Ni 10000/5000, Ni 10000/6180, T1 = Ni 2226, 20 kΩ NTC resistor)
  • Three or four wire connection option
  • Variable rod - Length L1, materials, diameters, possibility of threading
  • Thermowell Thread Type Options
  • Ability to provide custom temperature ranges for temperature sensors with converter

General

  • Reference
  • Name Temperature sensor - plastic connection head

Features

  • Measured Temperature
  • Product Type NTC
    Ni1000
    Ni10000
    Pt100
    Pt500
    Pt1000
  • Communication 0 ... 10V
    4 ... 20mA
  • Protection sign IP65
  • Maximum operating temperature 150°C
  • Diameter 4 mm
    5 mm
    6 mm
    7 mm
    8 mm
  • tube length 70 mm
    120 mm
    180 mm
    240 mm
    300 mm
    360 mm
    400 mm
