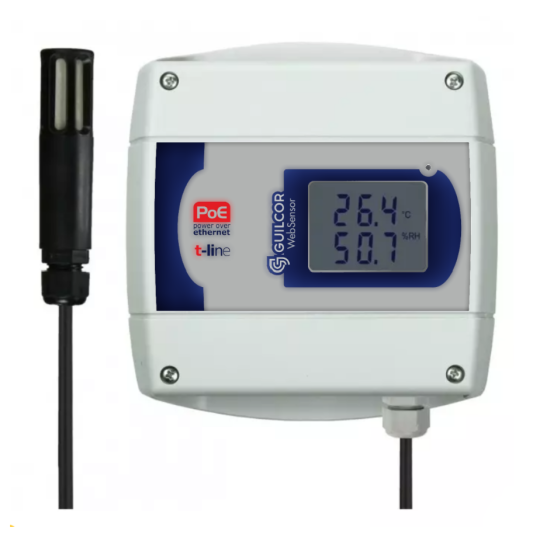

Web Sensor - Hygrometer thermometer with Ethernet interface

TECHNICAL DATA

T-line web sensor ambient temperature, relative humidity and atmospheric pressure.

Includes a remote alarm.

Web sensor with sensors temperature, relative humidity and atmospheric pressure integrated.

Le high precision capacitive polymer sensor provides excellent long-term calibration stability and ultimate accuracy.

Le dual liquid crystal display is an advantage.

The measured values ​​are also converted to another interpretation of humidity: dew point temperature, absolute humidity, specific humidity, mixing rate and specific enthalpy.

INCLUDED IN DELIVERY

• AR005708
• Manual
• Traceable calibration certificate
• Free Tsensor configuration software
• Cloud for 3 months

Power supply is not included.

MEASURED VALUES

- Temperature
- Relative humidity
- Calculated values ​​(dew point, etc.)
- Atmospheric pressure

Relative humidity range: 0 to 100%

Accuracy of the relative humidity measurement: ± 2,5% relative humidity from 5 to 95% at 23 ° C

Accuracy of temperature output: ± 0.6 ° C

Maximum atmospheric pressure measurement range: 600 to 1100hPa

Atmospheric pressure accuracy: ± 1,3hPa at 23 ° C

Resolution: 0.1 ° C, 0.1% RH, 0.1hPa

Measuring interval: 2s

Available temperature units: degrees Celsius, degrees Fahrenheit

Calculated values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Available atmospheric pressure units: hPa, kPa, mBar, mmHg, inHg, inH2O, PSI, oz / in2

Dew point output accuracy and range - for details see graphics in manual: full temperature range ± 1.5 ° C at ambient temperature T <25 ° C and RH> 30%
range -60 to + 80 ° C

Temperature compensation of humidity sensor: the entire temperature range

Temperature operating range: -30 to + 80 ° C

IP protection: Electronics IP30, sensors IP40

LAN connection: RJ-45, 10Base-T or 100Base-TX connector

Communication protocols: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Configuration: T-Sensor, WWW configuration

Supply : 9 to 30Vdc, maximum consumption 1W

Power cable : coaxial, diameter 5,5 x 2,1 mm

dimensions: 88,5 x 147,5 x 39,5 mm (W x H x D), rod length 75 mm

Approx Weight: 155g

Warranty: 3 years
