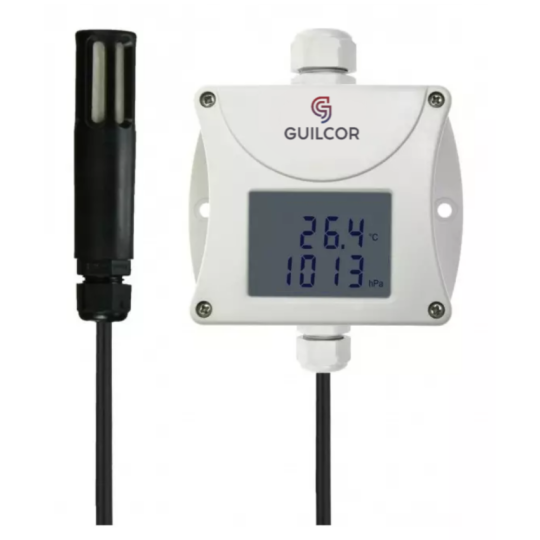

Web sensor - Hygrometer thermometer with Ethernet interface

Reference AR006615

  • Temperature, humidity, pressure.
  • Capacitive polymer sensor.
  • Easy wireless communication.
  • Remote alarm.
4.47MB Download

Introduction Manual | Web Sensor - Hygrometer Thermometer with Ethernet Interface

972.37KB Download

Quick Start | Web Sensor - Hygrometer Thermometer with Ethernet Interface

1.52MB Download

Cloud Security | Web Sensor - Hygrometer Thermometer with Ethernet Interface

1.2MB Download

CloudSupport | Web Sensor - Hygrometer Thermometer with Ethernet Interface

Product features Web sensor - Hygrometer thermometer with Ethernet interface

TECHNICAL DATA

Web sensor ambient temperature, relative humidity and atmospheric pressure.

Alarm remote.

Web sensor with relative humidity and temperature probe, 1 m cable.

Cable lengths of 2m or 4m are optionally available.

Atmospheric pressure sensor integrated.

Le capacitive polymer sensor High precision ensures excellent long term calibration stability and ultimate accuracy.

Le dual liquid crystal display is an advantage.

The measured values ​​are also converted to another interpretation of humidity: dew point temperature, absolute humidity, specific humidity, mixing rate and specific enthalpy.

INCLUDED IN DELIVERY

  • T7511
  • Manual
  • Traceable calibration certificate
  • Free Tsensor configuration software
  • Cloud for 3 months


MEASURED VALUES

- Temperature
- Relative humidity
- Calculated values ​​(dew point, etc.)
- Atmospheric pressure

Relative humidity range: 0 to 100%

Accuracy of the relative humidity measurement: ± 2,5% relative humidity from 5 to 95% at 23 ° C

Accuracy of temperature output: ± 0.4 ° C

Maximum atmospheric pressure measurement range: 600 to 1100hPa

Atmospheric pressure accuracy: ± 1.3hPa at 23 ° C

Resolution: 0.1 ° C, 0.1% RH, 0.1hPa

Measuring interval: 2s

Available temperature units: degrees Celsius, degrees Fahrenheit

Calculated values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Available atmospheric pressure units: hPa, kPa, mBar, mmHg, inHg, inH2O, PSI, oz / in2

Dew point output accuracy and range - for details see graphics in manual: ± 1,5 ° C at ambient temperature T <25 ° C and relative humidity> 30%
range -60 to + 80 ° C

Humidity sensor temperature compensation range: the entire temperature range

Humidity sensor temperature compensation range: -30 to +80 ° C

IP protection: Electronics IP30, sensors IP40

LAN connection: RJ-45, 10Base-T or 100Base-TX connector

Communication protocols: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: Email, SNMP Trap, Syslog

Configuration: T-Sensor, WWW setup

Filtering capacity of the sensor cover: 0.025mm - filter with stainless steel mesh

Supply : 9 to 30Vdc, maximum consumption 1W

Power cable : coaxial, diameter 5,5 x 2,1 mm

Probe cable length: 1m, 2m or 4m optional

Display unit dimensions: 88,5 x 93 x 39,5mm (W x H x D), probe length 88mm, probe diameter 18mm

Weight: about 210g - 1m probe

Warranty: 3 years
