ALTA wireless industrial humidity probe

Wireless industrial humidity probe

AR003728
225,87 €
Delivery in 2 to 3 weeks
Quantity
Delivery Time: 15 days

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment term.

+33-233-611-670

English - French - German - Spanish

International shipping

EXPRESS OR STANDARD delivery.

Product Description:

Wireless humidity sensors allow you to monitor the relative humidity of the air in a room or enclosure. Ideal for monitoring humidity in greenhouses, industrial spaces, museums, saunas and humidifiers. They can also be used for residential applications such as mold and dust mite control.

Main “Internet of Things” solutions for companies

The sensors offer a range of standard sensors with a range of up to over 350m through walls (12 to 14 walls generally). The use of Frequency Spread Spectrum (FHSS) also allows the sensors to have better immunity to interference from other wireless devices.

Superior power management provides the sensors with almost twice the battery life of standard wireless sensors.

  • Button cell sensors typically last over 3 years.
  • AA and industrial sensors generally last up to 12 years.
The products use the new Encrypt-RF® Security system (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages). Security is therefore maintained at all communication points, gateway sensor, software gateway.

Built-in data storage allows sensors to store data if communication with a wireless gateway is interrupted (power outage, Internet connection cut or out of range). Messages that cannot be delivered will be time stamped and stored in memory (up to the last 512 messages) until communication with the gateway is reestablished, in which case all messages will be transmitted.

Over-the-air updates allow products to be updated remotely if new patches or new features are available.

Monnit humidity temperature display

Product Features

  • Scientific quality sensor.
  • Accuracy of +/- 3% (between 10% and 90% RH).

  * The actual range may vary depending on the environment.
** Battery life is determined by the frequency of sensor reporting and other variables.

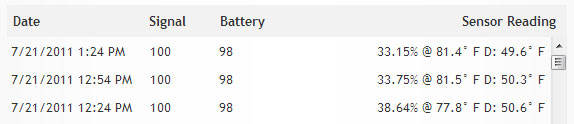

What does the data from this wireless sensor look like in the software?

Humidity temperature display
* also available in ° C

What's in the box?

  • Wireless sensor
  • Mounting hardware
  • 3V industrial battery (pre-installed)
  • SMA antenna

Thermistor specifications

Precision ± 3% under normal conditions (10% to 90% RH)
RH operating range 0 - 100% RH
HR response time 8 seconds (tau 63%)
Weight 105g

Industrial specifications

Supply voltage 2,0 - 3,8 VDC
Battery Type 3.6V replaceable, 1800mAH (single size AA)
Battery life Battery life up to 10 years. **
Maximum operating temperature -40 ° to 85 ° C (-40 ° to 185 ° F)
Optimal battery operating temperature + 10 ° C to + 50 ° C (+ 50 ° F to + 122 ° F)
Solar power option 3.0 VDC solar panel
600 mAH rechargeable battery (> 2000 charge cycles - 80% of initial capacity)
Charging temperature range: 0 ° to 45 ° C (32 ° to 113 ° F)
Max temperature range: -20 ° to 60 ° C (-4 ° to 140 ° F)
Housing material IP65, NEMA 4X, CE approved housing, weather resistant and CE approved
UL classification UL listed according to UL508-4x specifications (file E194432)
Size 3,7 '' x 2,32 x 1,38 ''

868 MHz specifications

Frequency of operation Operating frequency 868 MHz
Certifications CE certified. Tested and found to comply: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950.
Safe Encrypt-RF® (Diffie-Hellman + AES-128 CBC key exchange)
Range of devices Range of the device Wireless range up to 1 feet *


ALTA MNS2-8-IN-TS-ST industry wireless probe

Suggested applications for this sensor

  • Greenhouse temperature and humidity monitoring
  • Agricultural environment monitoring
  • Environmental monitoring of art galleries and museums
  • Humidifier monitoring
AR003728

Information

Measured
Humidity
Product Type
Wireless probe
Communication
Wireless RADIO
Autonomy + IP
10 years + IP65
