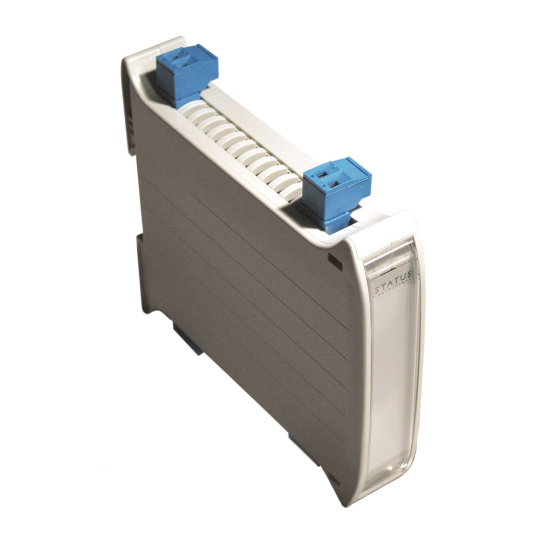

Transmitter for RTD, potentiometers and resistance sensors with ATEX version *Step required

GTTR200-XR
In production :  1 to 3 weeks
  • Suitable for RTD, potentiometers and resistance sensors.

  • ATEX IECEx version.

  • Sensor calibration function.

  • Adjustable inlet filter.

  • EAC approval.
Unit price
78,40 €
Final price
78,40 €
Your configuration:

International shipping

Standard or express delivery

Secure Payments

All payments are secure and approved.

Best price guarantee

Contact us to define your payment method.

+33-233-611-670

English - French - German - Spanish

TECHNICAL DATA

The TTR200 RTD temperature transmitter accepts a wide range of sensors, including Pt100, Pt500, Pt1000, potentiometer and resistance sensors, and generates a standard mA transmit signal (4 to 20). The product can be easily programmed using our free USB Speedlink software and a standard USB cable (safe zone version). Used with potentiometer and mV inputs, a linearization function is available allowing the mA output to act as required on 22 points of the input signal.
The product comes with a calibration feature so that the offset and range can be adjusted to match a particular temperature sensor when applied at a known reference temperature.
This RTD temperature transmitter can be ordered with any of our temperature probes and connection heads. We can supply ExD and Exia approved safety probe sets or temperature probe sets with the temperature transmitter included.
If you already know the specifications you need, we can configure the product for you at no additional cost.

Information

Type
Connection head
Type of entries
PT100
PT500
PT1000
Potentiometer
Type of outputs
4.20mA
