Type K
thermocouple

Make cold-junction compensation visible.

Type K is widely used for furnaces, engines, ovens, maintenance and general industrial measurement. Its broad reference range and common instrument support make it versatile, but the specific probe and environment determine where it can operate.

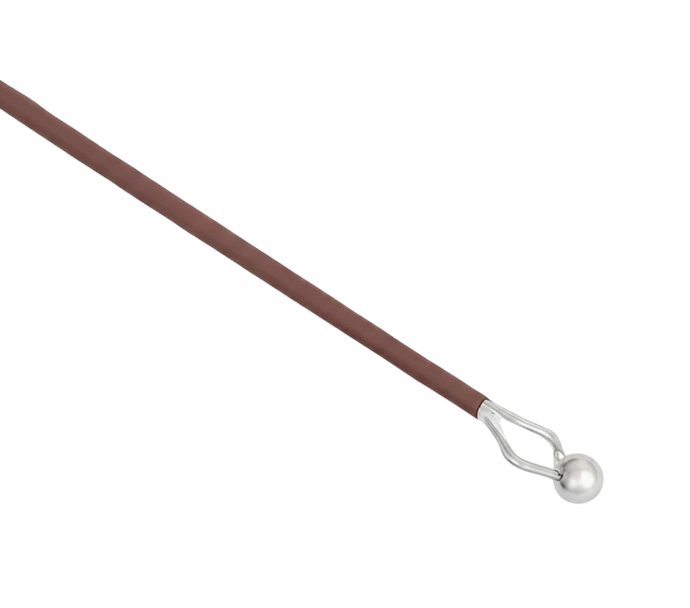

GUILCOR thermocouple sensing element
GUILCOR reference image. Construction, dimensions and wire identification depend on the selected part.

Understand the type

What defines a Type K thermocouple?

Type KBase metal
mVThermoelectric voltage signal
System choiceCurve, atmosphere and assembly

Nickel–chromium (+) / nickel–aluminium (−)

Broad availability of probes and compatible measuring equipment, with many mechanical constructions.

Thermal cycling, ageing and chemical exposure can change the characteristic. Reducing or sulphur-bearing environments require particular attention to materials and protection; compatibility is never established by the letter K alone.

Application check

See why the terminal temperature matters.

Input range: 0 to 1200Input range: 0 to 100

Move the measuring-junction and reference-junction temperatures. The terminal voltage is the difference between two values on the same Type K reference curve. Compensation adds the reference-junction equivalent voltage before converting back to temperature.

Measured terminal voltage—
Reference-junction equivalent voltage—
Compensated voltage at 0 °C reference—

Enable JavaScript to use this guide.

Ideal NIST characteristic, no probe or electronics errors. The reference junction is where thermocouple conductors transition to the measuring circuit; a remote ambient sensor may not measure its temperature correctly.

Emeasured = EK(Thot) − EK(Tref); Ecorrected = Emeasured + EK(Tref)

Operating principle

How the voltage becomes a temperature.

A thermocouple produces a thermoelectric voltage from two different conductors in a temperature gradient. The measured voltage depends on both the measuring junction and the reference junction. It is not a resistance sensor and does not need a measuring current to generate its signal; the readout electronics still require power.

Use the reference function for the exact type. With a reference junction at 0 °C, its tabulated voltage is E(T). With terminals at another temperature, the measured signal is E(Thot) − E(Tref). A single constant sensitivity is only a local approximation; it is not a substitute for the nonlinear reference curve.

Emeasured = E(Thot) − E(Tref)

Voltage and specification

Reference data for Type K.

NIST reference values; reference junction at 0 °C
Temperature (°C)Voltage (mV)
-200-5.891
00.000
1004.096
50020.644
100041.276

Use the correct characteristic

The NIST reference-function interval for Type K is -270 to 1372 °C. These calculation limits are not the service rating of a finished sensor. The table is rounded to 0.001 mV; rounding and interpolation must fit the intended application.

Initial wire tolerance classes apply only over their specified temperature intervals. A tolerance class is not a guarantee of total system accuracy or stability after use. Request the applicable standard, class and calibration evidence for the selected part.

NIST ITS-90 thermocouple reference data

Selection checklist

Specify the complete sensing assembly.

Electrical and thermal requirements

  • Exact thermocouple type, reference curve and polarity.
  • Minimum, normal and maximum temperature, including excursions and dwell time.
  • Required wire tolerance or calibration uncertainty, with the applicable interval and certificate.
  • Cold-junction, instrument, drift and installation contributions to the total error.
  • Response-time requirement with the medium, flow and test conditions stated.

Mechanical and environmental requirements

  • Atmosphere, chemical exposure, pressure and protection materials.
  • Wire diameter, sheath diameter, insertion length and measuring-junction construction.
  • Cable insulation, connector, sealing and mounting arrangement.
  • Vibration, bending, handling and maintenance constraints.
  • Calibration points, traceability and the inspection or replacement plan.

A reference-function range describes the mathematical characteristic. It is not the permitted continuous operating range of every wire, sheath, cable, connector or finished probe. Obtain the rating of the exact assembly; the most restrictive component and service condition govern selection.

Wiring and compatibility

Connect, compensate and configure the input.

Preserve the thermoelectric circuit

Keep the positive and negative conductors correctly identified through the probe, cable and connector. Use extension or compensating cable specified for the thermocouple type and its own permitted temperature interval. Verify the applicable colour-code convention; colour alone is not a universal identifier.

At the transition to the instrument, keep the two terminals as close as practical to the same known temperature. Place the compensation sensor where it represents that transition, away from local heat sources and gradients.

Configure the measuring input

Measuring junction → matching cable → reference terminals → differential input → compensation → type-specific conversion

Verify type selection, polarity, input range, common-mode limits, isolation, open-sensor detection and filtering. A grounded junction may create a ground path through the sheath; an ungrounded construction can provide isolation. Match the junction style to response, electrical and environmental requirements.

Applications

Application contexts for Type K.

Industrial ovens and furnaces

Review the temperature cycle, atmosphere, mounting and required measurement uncertainty with the application team.

Engines and thermal testing

Review the temperature cycle, atmosphere, mounting and required measurement uncertainty with the application team.

General maintenance and process monitoring

Review the temperature cycle, atmosphere, mounting and required measurement uncertainty with the application team.

These examples indicate where this sensing family may be considered. They are not approvals or guarantees for a particular process, fluid or safety function.

Mechanical integration

Choose the probe construction for the process.

A sensing element is only one part of the assembly. Select the mechanical format, materials, cable and connection around the real installation. GUILCOR can review these requirements for a prototype or production series.

Practical answers

Frequently asked questions.

Can I add the terminal temperature directly to an uncompensated temperature reading?

In general, no. Thermocouple curves are nonlinear. Apply compensation in the voltage domain using the same thermocouple type, then convert the corrected voltage.

Does a thermocouple need cold-junction compensation?

A thermocouple measurement needs a known reference junction. Modern instruments commonly measure the terminal temperature and compensate electronically. A controlled 0 °C reference is another method; a plain voltage measurement with an unknown terminal temperature is insufficient.

What determines accuracy and response time?

The complete assembly and measuring chain matter. Include calibration or tolerance, drift, reference-junction error, electronics and thermal installation. Response time depends on junction construction, sheath size, medium, flow and contact; there is no single value for a letter type.

Can thermocouples connect directly to an RTD or thermistor input?

Normally not. Those inputs measure resistance, whereas a thermocouple supplies a small voltage. Use an input or transmitter explicitly designed and configured for the selected thermocouple type.

SELECTION / YOUR APPLICATION

Is Type K the right starting point?

COMPARE BEFORE CHANGING

Review Type N alongside Type K.

Compare the thermocouple type, required atmosphere, protection system and readout configuration. Changing alloy type also changes the voltage characteristic expected by the instrument.

Explore Type N →
REPLACING AN EXISTING PART

Keep the complete specification together.

Keep the original thermocouple type, polarity, extension or compensating cable and controller configuration together. Review the sheath, junction and process connection as part of the replacement.

Prepare your enquiry →

These links support a specification review. They do not establish interchangeable parts or availability of a complete assembly.
