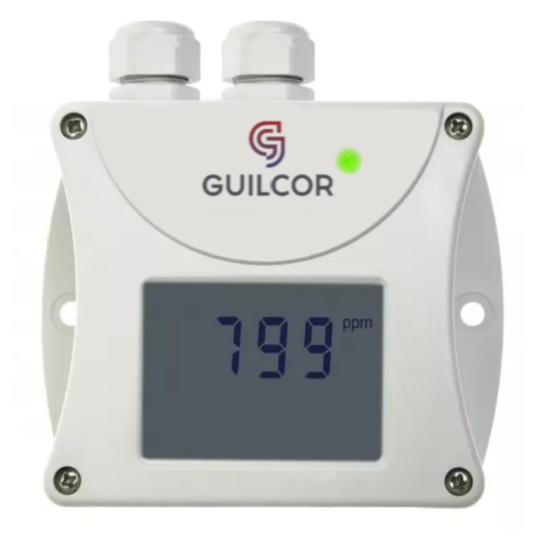

CO2 concentration and temperature transmitter with RS485 output, integrated sensors

Reference AR006673

  • CO2 sensor.
  • RS485 serial output.
  • Easy installation.
  • Long term stability.
876.26KB Download

Protocol | CO2 concentration and temperature transmitter with RS485 output, integrated sensors

1.23MB Download

Introduction Manual | CO2 concentration and temperature transmitter with RS485 output, integrated sensors

819.51KB Download

Quick Start | CO2 concentration and temperature transmitter with RS485 output, integrated sensors

Product features CO2 concentration and temperature transmitter with RS485 output, integrated sensors

TECHNICAL DATA

Sensor level and CO2 temperature.

The CO2 concentration and temperature transmitter with RS485 serial output is specially designed for use in demanding interiors in systems Energy management building and HVAC.

It was designed for Easy installation on the housings of wiring KU68 standard for household switches and sockets.

It is possible to switch off a large two-line LCD display.

Computerized design ensures long term stability and the failure indication.

The transmitter is designed for use in a non-aggressive environment

INCLUDED IN DELIVERY

  • T8448
  • Manual
  • Traceable calibration certificate
  • Free Tsensor configuration software


MEASURED VALUES

- Temperature
- CO2

CO2 concentration measurement range: 0 to 2000 ppm

Accuracy of CO2 concentration measurement: ± (50 ppm + 2% of reading) at 25 ° C and 1013hPa

Accuracy of temperature output: ± 0.5 ° C

Temperature units: degrees Celsius, Fahrenheit

Temperature range : -10 to +50 ° C

IP protection: IP20

Power : 9-30Vdc, power consumption about 1W

Dimensions: 88 x 106 x 33 mm (W x H x D)

Material: ABS

Color: White

Weight: approximately 150g

Warranty: 3 years
