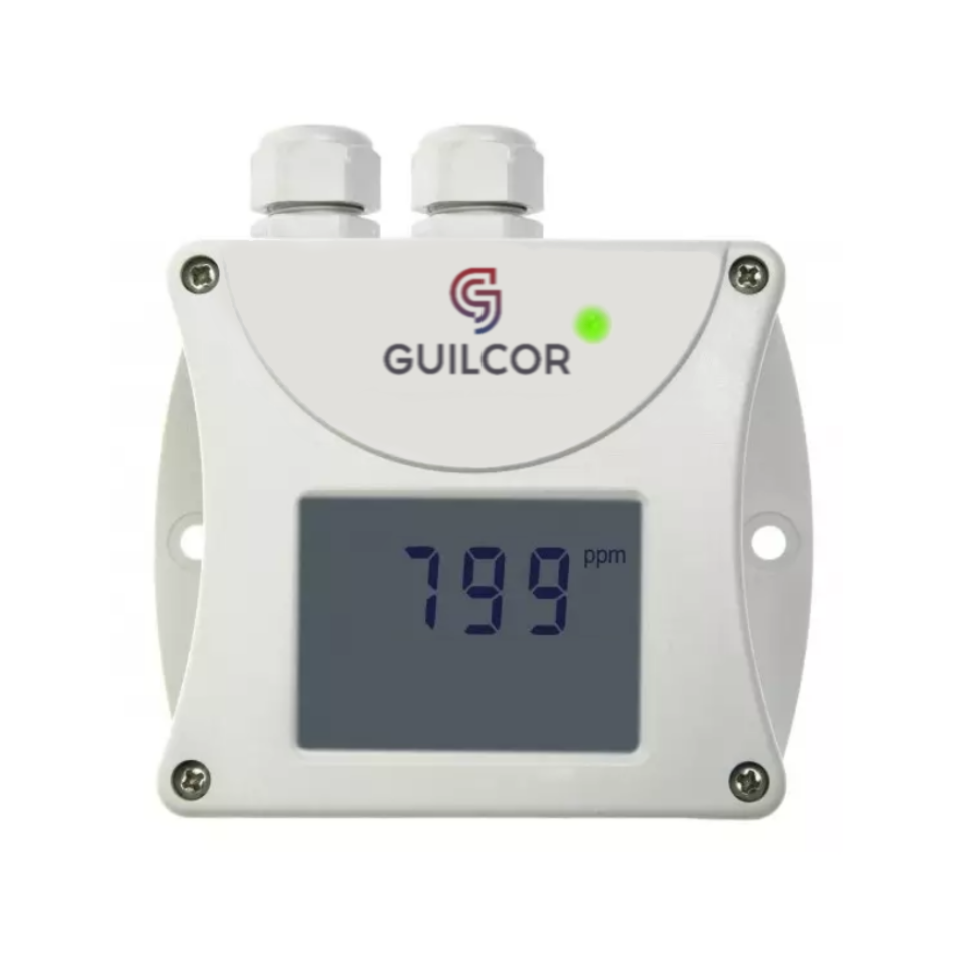

CO2 concentration transmitter with RS232 interface, internal carbon dioxide sensor

Reference AR006655

  • CO2 sensor.
  • Color LED.
  • IP30.
  • 3 years warranty.
876.26KB Download

Protocol | CO2 concentration transmitter with RS232 interface, internal carbon dioxide sensor

1.1MB Download

Introduction Manual | CO2 concentration transmitter with RS232 interface, internal carbon dioxide sensor

1.29MB Download

Quick Start | CO2 concentration transmitter with RS232 interface, internal carbon dioxide sensor

Product features CO2 concentration transmitter with RS232 interface, internal carbon dioxide sensor

TECHNICAL DATA

CO2 sensor - carbon dioxide level.

Green LED shines: CO2 concentration from 0 to 1000 ppm

Yellow LED shines: CO2 concentration 1001 to 1200 ppm

Red LED shines: CO2 concentration 1201 ppm and more

INCLUDED IN DELIVERY

  • T5340
  • Manual
  • Traceable calibration certificate
  • Free Tsensor configuration software


MEASURED VALUES

- CO2

CO2 concentration measurement range: 0 to 2000 ppm

Accuracy of CO2 concentration measurement: ± (50ppm + 2% of reading) at 25 ° C and 1013hPa

Optional CO2 concentration measurement range: 0 to 10000ppm ± (100ppm + 5% of reading) at 25 ° C and 1013hPa

Operating temperature range: -30 to + 60 ° C

Communication protocol : ModBus RTU and Advantech ADAM compatible protocol

Communication speed: 110 to 115200 Bd

IP protection: IP30

Power : 9-30Vdc

Dimensions: 88,5 x 94 x 39,5 mm (W x H x D)

Weight: about 145g

Warranty: 3 years
