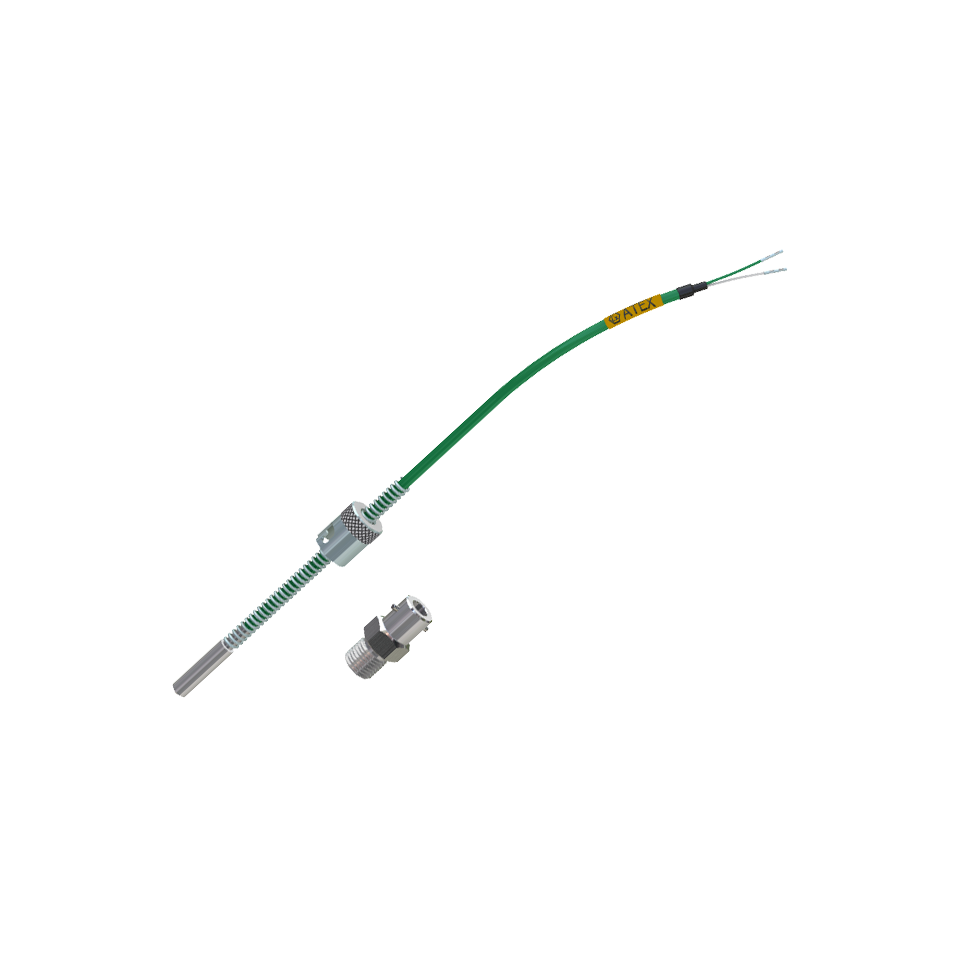

ATEX Intrinsically Safe Wired Bayonet Thermocouple

Reference GXI-TTE310R / GXI-TTE311R / GXI-TTE312R

Delivery in 3 to 5 weeks
  • Measuring range: -40 .. + 400 ° C (depends on cable insulation)
  • Plastics industry
  • Light energy industry
  • General industrial services
  • Installation in hazardous areas:
    Gases, vapors, mists (G): Zone 0, 1, 2
    Dust (D): Zone 20, 21, 22
    Mines: M1

Product features ATEX Intrinsically Safe Wired Bayonet Thermocouple

Features

  • Single or double TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    N-type (NiCrSi-NiSi),
    T-type (Cu-CuNi),
    E-type (NiCr-CuNi)
  • Stainless steel AISI321 / 1.4541
  • Version with protective tube diameter Ø5 mm (XI-TTE310), Ø6 mm (XI-TTE311), Ø8 mm (XI-TTE312)


Temperature difference

The temperature range of the sensor depends on the insulation of the connection cable.


isolation

measuring range

PVC / Sheath: PVC -10 .. + 105 ° C
Silicone / Sheath: silicone -40 .. + 180 ° C
Teflon® FEP / Sheath: silicone -40 .. + 180 ° C
Teflon® FEP / Sheath: silicone / Braid: copper -40 .. + 180 ° C
Teflon® PFA / Sheath: teflon® PFA -40 .. + 260 ° C
Teflon® FEP / Sheath: teflon® FEP / Braid: copper -40 .. + 205 ° C
Fiberglass / Sheath: fiberglass / Braid: stainless steel -40 .. + 400 ° C


Description

The thermocouples of this series are designed to be screwed directly into a socket, mainly in extrusion molds. These thermocouples are suitable for solid media under moderate mechanical load and under normal chemical conditions.

Construction

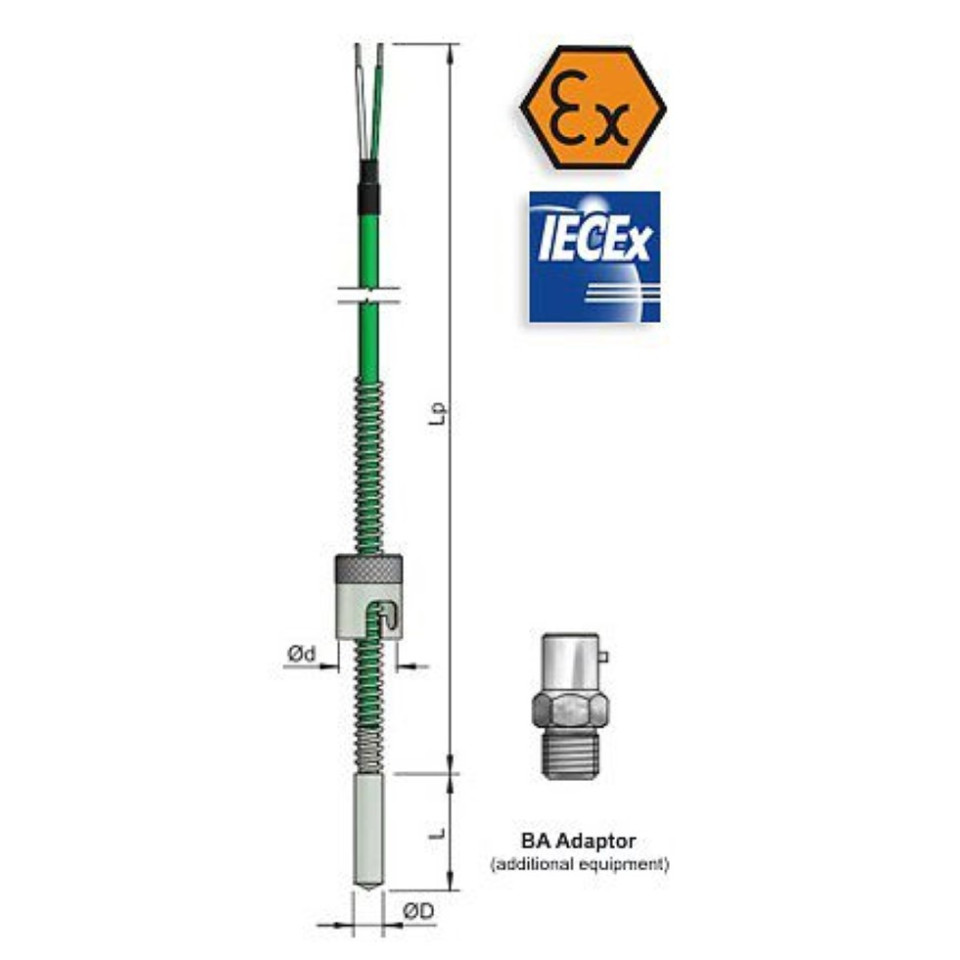

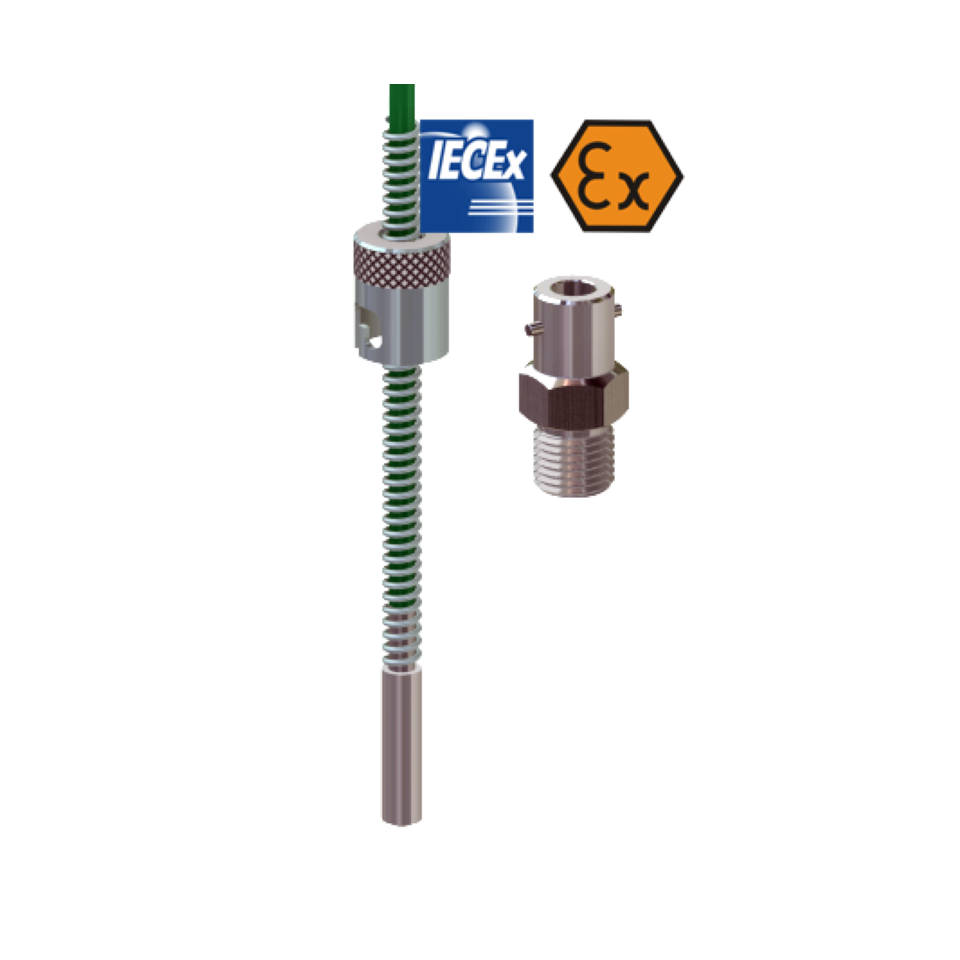

The sensor consists of a thermocouple cable, a protective tube, a spring and a bayonet cap.

Insertion length, process connection, type of construction, accuracy, cable insulation can be individually selected for the respective application.

Autres versions

This datasheet contains only a small portion of our wired thermocouple supply program. On customer request, other versions can also be delivered.
